Heavy Equipment Applications
ATI’s product range is used extensively by global OEMs and Tier Ones in the off-highway and construction sectors. The firm’s product portfolio embraces hardware, software and associated 3rd party products designed to enhance the efficient development of control systems (ECUs) and / or powertrain development, covering battery electric vehicle (BEV), hybrid electric vehicle (HEV) and legacy internal combustion engine (ICE) diesel technologies.
ATI’s wide range of automotive control system development tools includes ECU Interfaces, low and high-voltage Data Acquisition modules and I/O Hardware, CANbus interfaces, plus Test Cell powertrain measuring equipment, including PICOTURN turbo speed sensors. The portfolio of powerful, user-friendly software products includes packages for Calibration/Data Acquisition (VISION), ECU Rapid Control Prototyping (No-Hooks / OnTarget) and CAN bus communication (CANLab) including industry-standard J1939 protocols.
The expanding scale of contemporary electronic control systems results in thousands of parameters available for the calibrator to modify, so fine tuning them can be as complicated as it is critical. However, ATI tools significantly improve the efficiency and effectiveness of the control system development process by allowing engineers to measure and time-align relationships of inputs and outputs and make real-time modifications, all in a single, adaptable software solution.

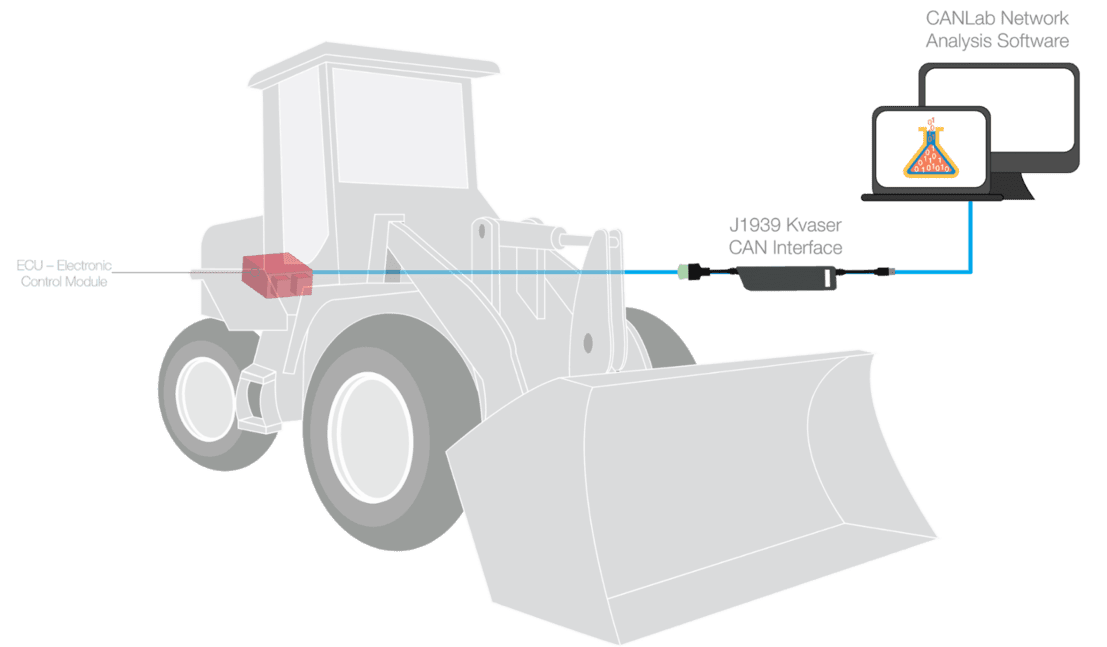

This application example shows the J1939 adapter for the Kvaser along with the J1939 toolkit within CANLab. VISION can replace CANLab in this application example if required.
