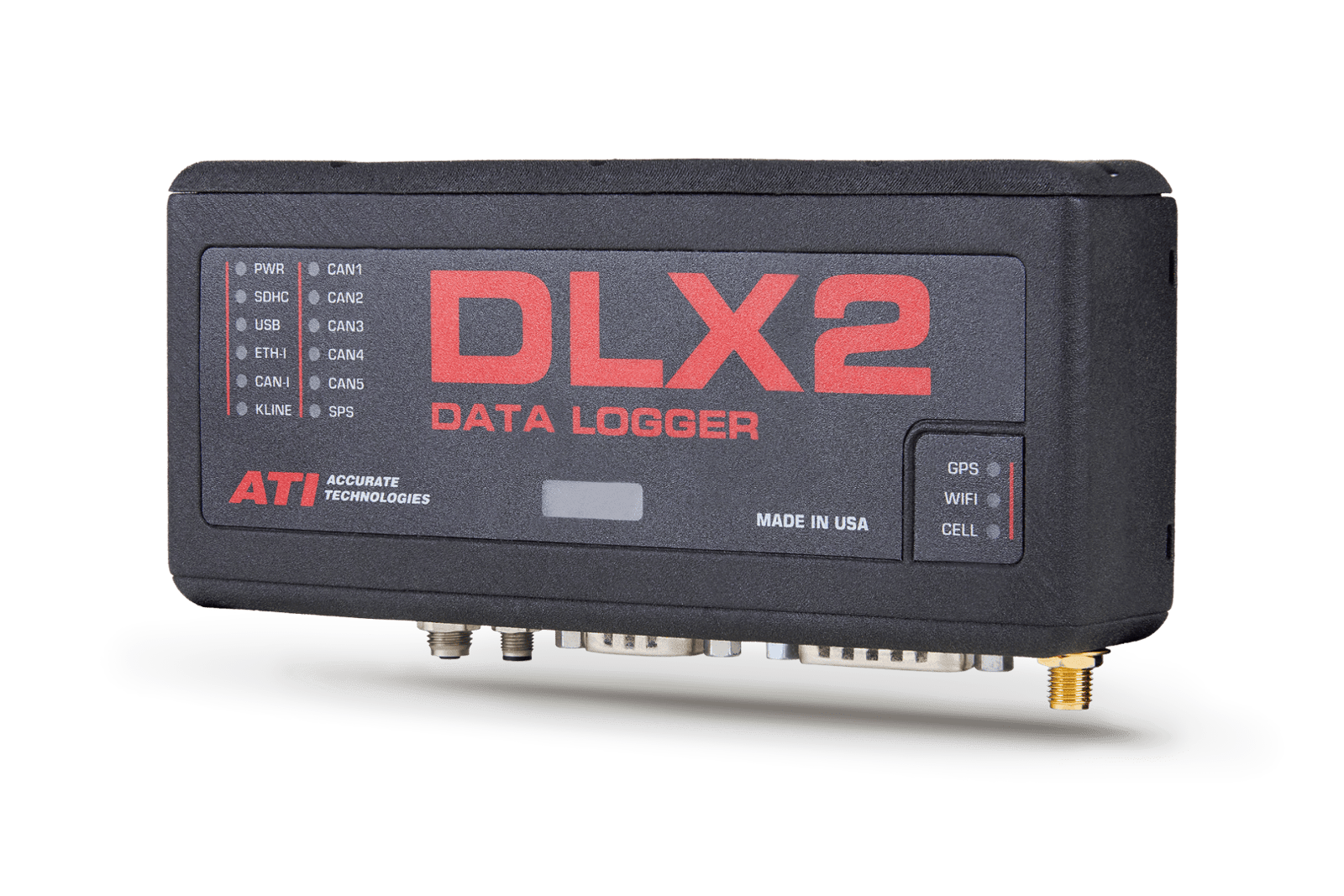

DLX Datalogger Module
The DLX Datalogger offers a unique combination of functions that provide the features of a CAN interface, data acquisition module, and datalogger all in one compact package. Communication channels include CAN and K-line that interface to ECUs or communicate with ATI data acquisition hardware.
The DLX Datalogger is easily configured using ATI VISION Calibration and Data Acquisition software. The files are saved to the SDHC memory card in ASAM MDF V4 format. Data is stored on the DLX in PC readable files that can be easily accessed by using the USB port or removing the SDHC card.
Product Features:
- Four digital input/output channel
- Four +/-5 V differential analog inputs
- Four 0 to 20 V single-ended analog inputs
- Four K-type thermocouple input channels
- Two high speed CAN 2.0B channels
- One ISO 9141 compliant K-Line channel
Free Configuration Software for Third-party Tools
+/-5 V Analog Inputs
0-20 V Analog Inputs
Thermocouple Inputs
Sensor Power Supply
Digital Input/Output
Communications
Operating Conditions
+/-5 V Analog Inputs
+/-5 V Analog Inputs
| Number of Channels | (4) bipolar differential inputs |
| Input Range | ±5 V |
| ADC Resolution | 16-bits |
| Max Sample Rate | 2 KHz per channel, fixed |
| Input Impedance | 20 MΩ |
| Input Protection | ± 36 V |
0-20 V Analog Inputs
0-20 V Analog Inputs
| Number of Channels | (4) unipolar single-ended inputs |
| Input Range | 0 - 20 V |
| ADC Resolution | 16-bits |
| Max Sample Rate | 2 KHz per channel, fixed |
| Input Impedance | 1.14 MΩ |
| Input Protection | ± 100 V |
Thermocouple Inputs
Thermocouple Inputs
| Number of Channels | (4) K-type channels |
| Measurement Range | -200 °C to +1372 °C / -328 °F to +2501 °F |
| Max Sample Rate | 10 Hz per channel |
| Input Protection | ± 36 V |
Sensor Power Supply
Sensor Power Supply
| Number of Channels | (1) adjustable output 5 - 15 V (500 mW max load) |
| Adjustment Step | 10 mV |
| Accuracy | ±20 mV |
Digital Input/Output
Digital Input/Output
| Number of Channels | (4) unipolar single-ended inputs/outputs |
| Input Impedance | 100 KΩ |
| Input Switching Thresholds | LVTTL |
| Output States | Logic low, logic high, disabled (H-Z) or open drain (OD) on |
Output Drive Capability: Logic Low Logic High OD On Resistance OD Continuous Load Current OD Load Supply Voltage Leakage Current at H-Z | 0.6 Vmax at IOL=" 0.1" mA 2.7 Vmin at IOH=" -0.1" mA 0.8 Ω max at 0.5 A 0.5 A max 36 V max ±3.5 uA |
| Min-Max Applied Voltage | -0.6 to 36 V |
Communications
Communications
USB PC Communications | (1) USB 2.0 channel; supporting VISION and third party software via XCP |
| CAN Network Communication | Communication(2) CAN 2.0B channels |
| K-Line Network Communication | (1) ISO 9141 compliant K-Line channel |
Operating Conditions
Operating Conditions
Bi-color LED Indicators | (1) Power, (1) USB communication, (2) CAN communication, (1) K-Line communication, (1) Logger status |
| Memory Storage Type | User-removable SDHC memory card with sealed cover 32 GB class 10 industrial grade card included |
| Connectors | To PC: USB Mini-B I/O Signal (INST): DB26HD-M Power and Data (COM): DB15HD-M |
| Power Supply | 5 to 36 VDC |
| Temperature Range | -40 °C to +85 °C / -40 °F to +185 °F |
| Construction | IP65 Nylon 11 bioplastic enclosure |
| Dimensions | 120 x 64.5 x 23.3 mm / 4.7 x 2.5 x 0.9 in |
| Weight (max) | 145 g / 5.1 oz |
*under development
Accessories
DLX Communication Cable
150-0210
DB15 to unterminated (1.83m/6ft)
DLX I/O
Cable
150-0211
DB26 to unterminated (1.83m/6ft)
All specifications are subject to change without notice.
