AE-100 and AE-1000

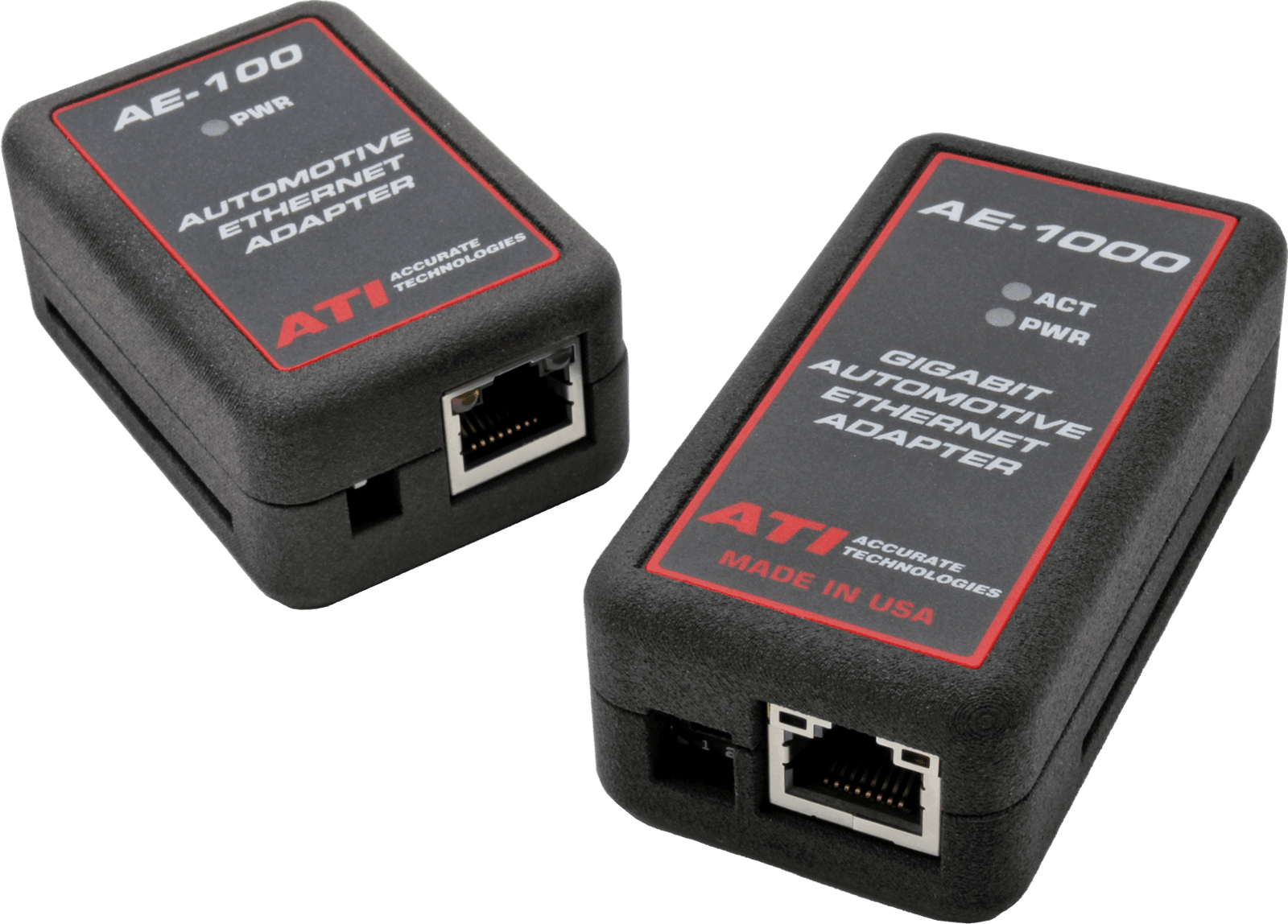

The ATI Automotive Ethernet Adapters are bi-directional physical layer media converters which converts between standard 100Base-T Ethernet and 100Base-T1 Automotive Ethernet. The AE-1000 has the added feature of supporting conversions between 1000Base-T Ethernet and 1000Base-T1 (OPEN Alliance BroadR-Reach (OABR) compatible) Automotive Ethernet via a user-selectable switch . Both the AE-100/1000 can be used out-of-the-box with all standard Ethernet devices and does not require any software to operate or configure.
Product Features:
  • Both the AE-100/1000 are capable of 100Mbps pass-through data rate
  • Can be powered from vehicle power via the DB9 or from Power over Ethernet (PoE) which drastically simplifies wiring and makes it a plug and play standalone solution
  • AE-1000 is capable of 1Gbps pass-through data rate
  • Physical switch to select M/S mode avoids auto-negotiation start-up delay
  • AE-1000 has an additional physical switch to select speed
  • Wide -40 to +85°C operating temperature for in-vehicle usage including hot/cold weather testing
  • Automotive surge tolerant wide operating voltage of 6 to 36VDC, if PoE not available
  • Rugged nylon enclosure with clip-on mounting bracket

No Software Required

More Info - Contact Sales
Buy Now
EN Datasheet
CN Datasheet
Video Spotlight

AE-100 Automotive Ethernet Adapter

ATI's AE-100 is a simple, elegant solution granting users access to Automotive Ethernet, the latest technology in vehicle data communication, diagnostics, calibration and data acquisition, delivering a simpler, faster method of data transfer.

Features
Hardware
Mechanical
Features

Features

AE-100  AE-1000
Speed
100Mbps data rate
 100/1000Mbps data rate
Mode Switch
 Selection of M/S Mode on Automotive Ethernet Selection of M/S Mode on Automotive Ethernet
Selection of 100Mbps Speed or 1Gbps Speed
 Physical Layer100Base-T1 100/1000Base-T1
Hardware

Hardware

 AE-100 AE-1000
 LEDs
Power indicator
Ethernet link and status indicators
 Power indicator
Ethernet activity indicator
Ethernet link and status indicators
RJ45 Connector
Standard 100Base-TX Ethernet
Standard 100/1000Base-TX Ethernet
 DB-9 Connector
100Base-T1 Automotive Ethernet
External DC Power Input
 100/1000Base-T1 Automotive Ethernet
External DC Power Input
Power
  IEEE 802.3af/at PoE on RJ45 (or)
6 to 36VDC, automotive surge tolerant on DB-9
Operating Temperature
  -40°C to +85°C / -40°F to +185°F
Warranty
 1 Year
Mechanical

Mechanical


 AE-100AE-1000
 ConstructionIP40 nylon enclosure

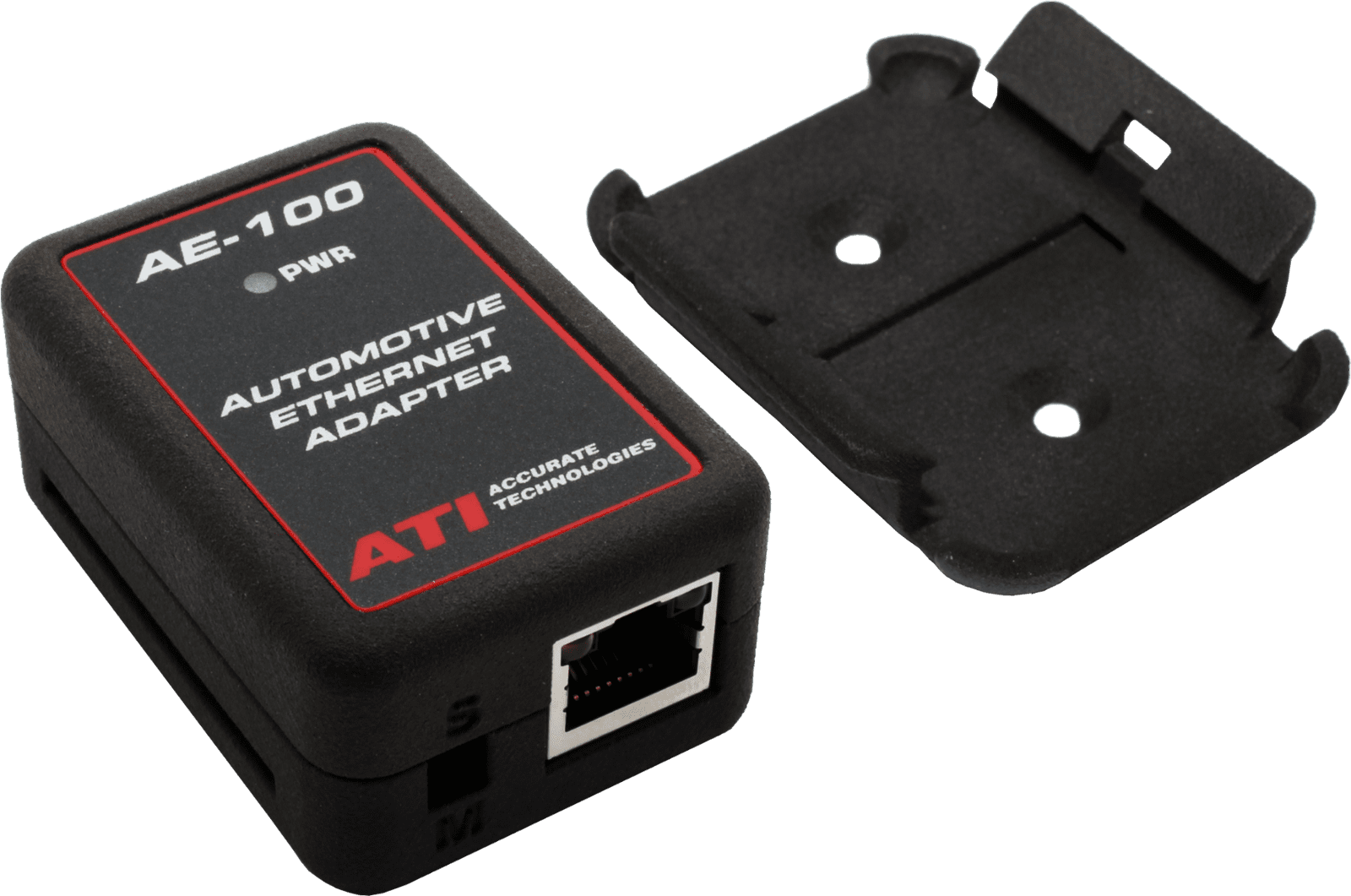

 Mounting Options Upon request, one clip-on mounting bracket can be included with purchase of an Automotive Ethernet Adapter
Dimensions
 61.5mm x 42.0mm x 28.0mm / 2.42in x 1.65in x 1.10in78.5mm x 42.0mm x 28.0mm / 3.09in x 1.65in x 1.10in
Weight
52.6g / 1.9oz
 65.21g / 2.3oz
Pinout

All specifications are subject to change without notice.
