Automotive Ethernet Adapters
The AE-100, AE-1000, and AE-1000 USB Automotive Ethernet Adapters are bi-directional physical layer media converters between standard Ethernet and Automotive Ethernet (OPEN Alliance BroadR-Reach).
Product Features:
- All versions are intended for plug and play use without any additional configuration software
- Compact, rugged nylon enclosure with an optional clip-on mounting bracket
- -40 to +85°C operating temperature for in-vehicle use including hot/cold weather testing
- Physical Commander/Responder mode selection switch minimizes start up negotiation delays
- AE-100 and AE-1000 support Power over Ethernet (PoE) to eliminate extra power wiring or can be DC powered using a surge tolerant operating voltage of 6-36VDC (suitable for in-vehicle use)
- AE-1000 USB is powered via USB and supports standard NIC drivers installing as an Ethernet port on the PC
No Software Required
Automotive Ethernet Features
General Features
Pinout
Automotive Ethernet Features
Automotive Ethernet Features
| AE-100 | AE-1000 | AE-1000 USB |
| Speed | 100Mbps data rate | 100/1000Mbps data rate |
| Mode Switch | Selection of M/S Mode on Automotive Ethernet | Selection of M/S Mode on Automotive Ethernet Selection of 100Mbps Speed or 1Gbps Speed |
| Physical Layer | 100Base-T1 | 100/1000Base-T1 |
General Features
General Features
| AE-100 | AE-1000 | AE-1000 USB | |
| LEDs | Power indicator Ethernet link and status on RJ45 | Power indicator Automotive Ethernet activity Ethernet link and status on RJ45 | Power indicator Automotive Ethernet activity |
| PC Connector | RJ45 Standard Ethernet | RJ45 Standard Ethernet | USB 3.0 Type C |
| Automotive Ethernet Connector | DB-9 male Automotive Ethernet (and) External DC Power Input | DB-9 male Automotive Ethernet (and) External DC Power Input | 3-pin Terminal Block Automotive Ethernet |
| Power | IEEE 802.3af/at PoE on RJ45 (or) 6 to 36VDC on DB-9 | IEEE 802.3af/at PoE on RJ45 (or) 6 to 36VDC on DB-9 | USB Powered |
| Operating Temperature | -40°C to +85°C / -40°F to +185°F |
| Construction | |
| Mounting Options | Optional clip-on mounting bracket |
| Warranty | 1 Year |
Pinout
Pinout
| AE-100 | AE-1000 | AE-1000 USB |
 |  |  |
All specifications are subject to change without notice.
Accessories

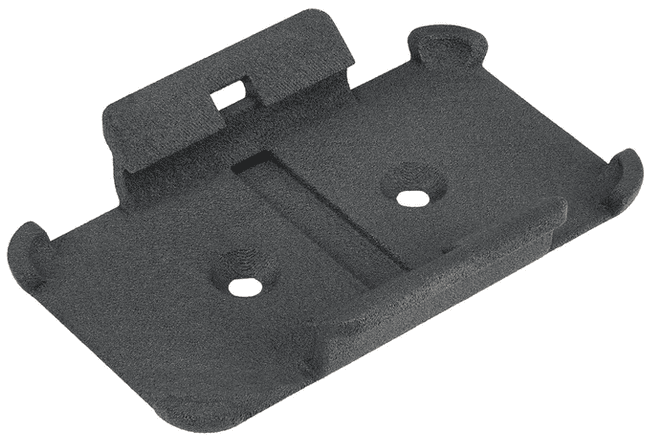

AE-1000 Mounting Bracket
151-0056
Clip-on mounting bracket for AE-1000

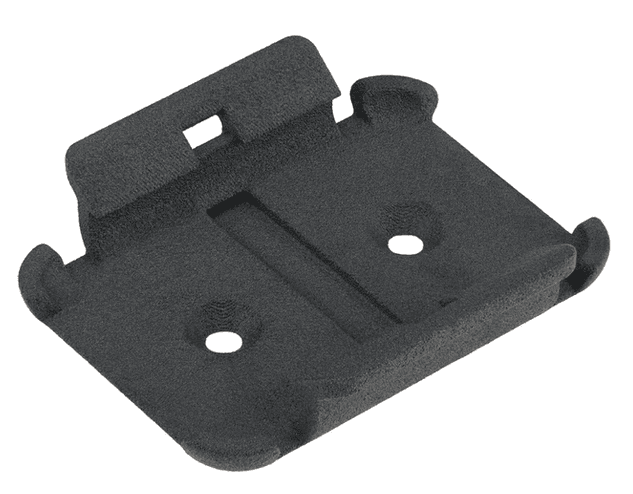

AE-100 Mounting Bracket
151-0055
Clip-on mounting bracket for AE-100
