NS-1 Network Switch
The NS-1 Network Switch is a 6-port Gigabit Ethernet switch that is designed to meet the needs of using Ethernet devices in development vehicles and industrial applications. It provides a unique combination of features not found in most commercial and industrial Ethernet switches.
Features:
- (6) 10/100/1000Mbps Gigabit Ethernet ports
- Supplies Power over Ethernet (PoE) on all 6 ports
- Automotive surge tolerant wide operating voltage of 6 to 36VDC
- Wide operating temperature range for hot and cold weather testing
- Rugged metal enclosure with mounting holes
- Fan-less design for high reliability
- Lemo and Phoenix terminal block power connector options
- DIN rail bracket option for industrial applications
- Supports IEEE-1588 Precision Time Protocol (PTP) in hardware on all 6 ports
- Compatible with standard Ethernet devices
No Software Required
Features
Hardware
Mechanical
Variants
Features
Features
| Speed | 10/100/1000Mbps Gigabit Ethernet |
| Number of Ports | (6) PoE sourcing ports |
| Power over Ethernet (PoE) | IEEE 802.3at/af Power Source Equipment (PSE) 60W total PoE Budget (up to 50°C ambient, then derated 0.6W/°C) Up to 30W across ports 1-3 and 30W across ports 4-6 |
| Time Sync | IEEE-1588 PTP (Precision Time Protocol) in hardware |
Hardware
Hardware
| LEDs | (1) Power indicator (2) Ethernet link and status indicators per port |
| Ethernet Connectors | (6) Standard 10/100/1000Base-T RJ45 |
| Power Connector | 153-0009 – Lemo 1F Series 3-pin 153-0010 – 2-pin Phoenix Terminal Block 153-0011 – 2-pin Phoenix Terminal Block |
| Power | 6 to 36VDC, automotive surge tolerant Maximum PoE power limited <10VDC |
| Operating Temperature | -40°C to +85°C / -40°F to +185°F |
Mechanical
Operating Conditions
| Construction | IP40 aluminum enclosure |
| Fans | Fan-less for high-reliability |
| Mounting Options | Threaded holes on sides or DIN Rail mount bracket option |
| Dimensions | 134.1mm x 93.7mm x 28.4mm / 5.28in x 3.69in x 1.12in |
| Weight | 407g / 14.36oz |
Variants

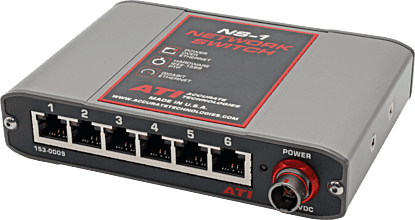

153-0009

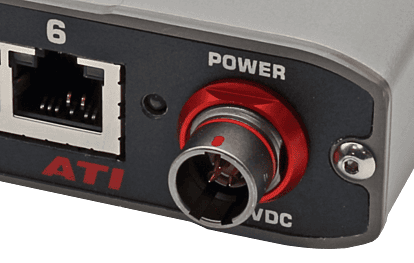

Lemo Connector
153-0010

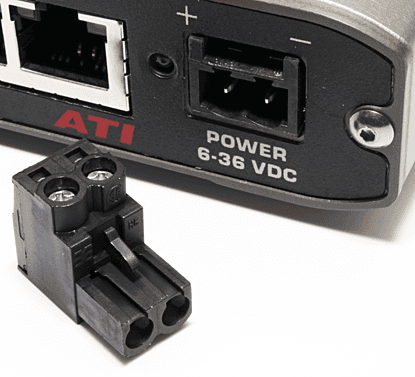

Plugable Terminal Block

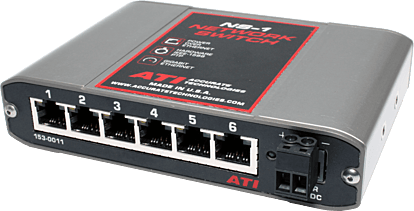

153-0011

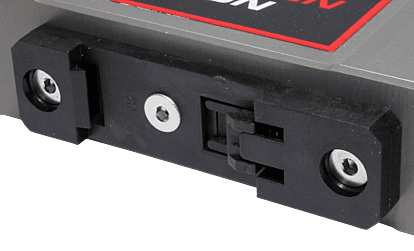

Terminal Block w/ DIN Rail Mount
Accessories
Cable DC PWR LEMO
150-0244-6FT

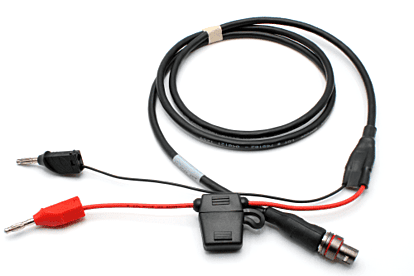

Cable DC PWR LEMO Red 1F 3-pin plug to banana jacks 6FT.
Contact your local sales office for purchasing details
All specifications are subject to change without notice.
