VISION Network

Hub 2

  • High-performance upgrade for the VISION Network Hub (for non-logging applications)
  • Higher data throughput compared to VNH1 for faster data acquisition and/or more channels
  • (2) CAN FD channels for connecting ATI’s EMX and EDAQ data acquisition modules
  • (2) CAN FD channels for connecting generic CAN devices (similar to ATI’s CANary FD product)
  • Support for CAN FD and classic CAN on each of the 4 channels at up to 8Mbps data rate
  • Galvanic isolation, physical termination switches and LED status indicators for each CAN channel
  • All-new hardware design with auto-resetting current limiting circuit for enhanced power protection
  • USB 2.0 connection (480Mbps) to the VISION host PC

Hub 2 Specifications

Operating Conditions
Indicators
Operating Conditions

Operating Conditions

 Application Interface VISION Calibration and Data Acquisition Software
 CompatibilityVISION 7.0+
 CAN Channels (4) CAN FD / Classic CAN at up to 8Mbps
Isolation
Independent galvanic isolation for each CAN channel
 Connectors
(1) USB connection to PC (high-retention)
(2) Lemo 1B Series 5-pin CAN/power for ATI DAQ hardware
(1) DB-9 for 2 channels of generic CAN devices (pins 2/7 and 1/8)
(1) Lemo 1B Series 3-pin for Instrumentation power input
Power Consumption
USB - 1.1W
Instrumentation power - pass-through to devices
 Construction Rugged aluminum enclosure
Temperature Range
-40 °C to +85 °C / -40 °F to +185 °F
 Dimensions135.35 x 93.73 x 31.5 mm / 5.33 x 3.69 x 1.24 in
 Weight 292 g / 13.0 oz
Indicators

Indicators

LED Indicators
 (1) Instrumentation power status
(1) USB power status
(5) CAN/USB communication status
Switches
(1) Instrumentation power on/off
(4) CAN bus termination on/off

End Of Life Announcement (EOL)

The VISION Network Hub 1 will be discontinued from the end of 2024. For this reason, VNH1 is not recommended for new applications.

EN Datasheet
CN Datasheet

Accessories

VISION Hub to EMX/VID Cable

VISION Hub to EMX/VID Cable

150-0209

Connects VISION Hub to VID or EMX, LEMO 1B 5-pin plug to 1F 5-pin plug (0.15m/6in, 0.3m/12in, 1.83m/6ft, 3.66m/12ft, 4.57m/15ft, 6.10m/20ft or 7.92m/26ft).


Buy Now
CAN Termination

CAN

Termination

151-0008

EDAQ CAN termination for cable






Buy Now
HUB to EDAQ  Cable
HUB to EDAQ
Cable

150-0021/22/23

90°/180° connectors (3.66 m/12 ft, 10.1 m/33 ft or 1.83 m/6 ft)





Buy Now
EDAQ to EDAQ  Cable

Lemo 1B DC/CAN Cable

150-0174/17/18/19

Lemo 1B 5-pin DC/CAN cable with straight connectors on both ends 6FT, 12FT, and 33FT



Buy Now
Power Cable
Power
Cable

150-0010

VISION Hub power cable (1.83 m/6 ft, 3.66 m/12 ft or 10.1 m/33 ft).




Buy Now
U Adapter   (Hub/VOM)

U Adapter

(Hub/VOM)

150-0024

Joins CAN connectors for stacked VISION Hub and VOM; 90° 5-pin LEMO 1B connectors.


Buy Now
ECU Cable
ECU
Cable

150-0027/28/30

VISION Hub to vehicle CAN network banana jacks (3.66 m/12 ft or 10.1 m/33 ft, 1.83 m/6 ft).
For VNH1 Only


Buy Now
Mounting  Brackets

Mounting

Brackets

151-0009

Side mounting brackets for stacked VISION Hub and/or auxiliary modules.



Buy Now
U Adapter (Hub/ DC Booster)
U Adapter
(Hub/ DC Booster)

150-0025

Joins power connectors for stacked VISION Hub and DC Booster; 90° 3-pin LEMO 1B connectors


Buy Now
HUB to EDAQ  Cable

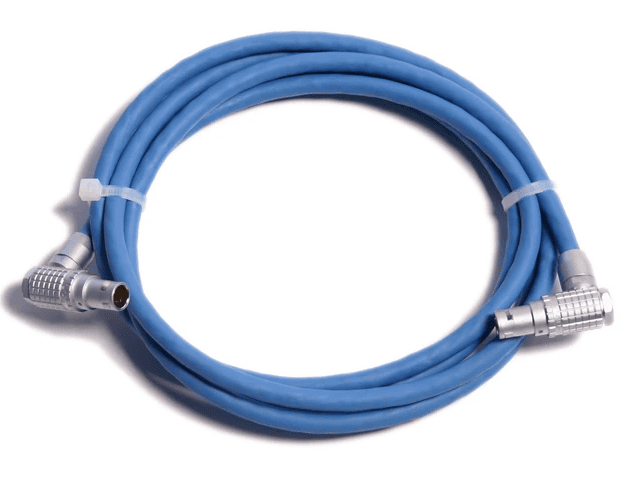

Lemo 1B DC/CAN Cable 90°/90°

150-0016/14/13

Lemo 1B 5-pin DC/CAN cable with 90° connectors on both ends.6IN, 6FT, 12FT, and 33FT


Buy Now

Image not available

Lemo 1B DC/CAN Cable Unterminated

150-0197

Lemo 1B 5-pin DC/CAN cable with straight connector on one  end, other end unterminated

 6IN, 12IN, 6FT, 12FT, 15FT


Buy Now

All specifications are subject to change without notice.
