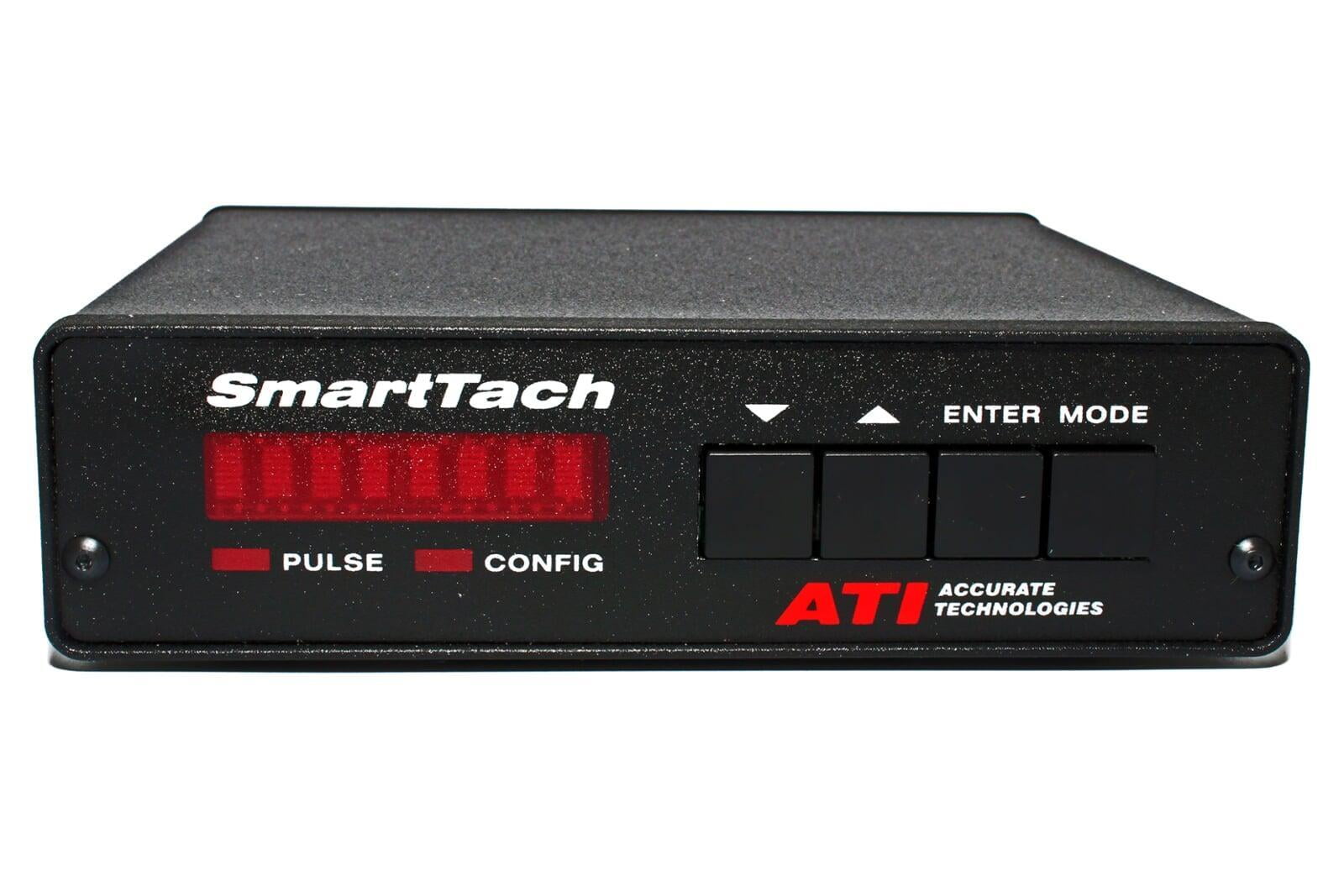

SmartTach Module

Measure the RPM (revolutions per minute) of any type of engine using ATI's SmartTach. The SmartTach reads any pulse input from a wide range of sources such as magnetic sensor, encoders, Electronic Control Unit outputs or ignition coils. Its flexibility makes it easy to measure speed in miles or kilometers per hour.

In addition, the SmartTach also measures frequency, translating frequency to an analog output that can be monitored via a panel meter or any data acquisition device.
Product Features:
  • Analog Voltage Output proportional to measurement
  • Conditioned Digital Pulse Output
  • RS-232 serial Interface
  • Programmable Range Outputs
  • In-vehicle, stand-alone or rack mount

Free Configuration Software for Third-party Tools

More Info - Contact Sales
Buy Now
EN Datasheet
CN Datasheet

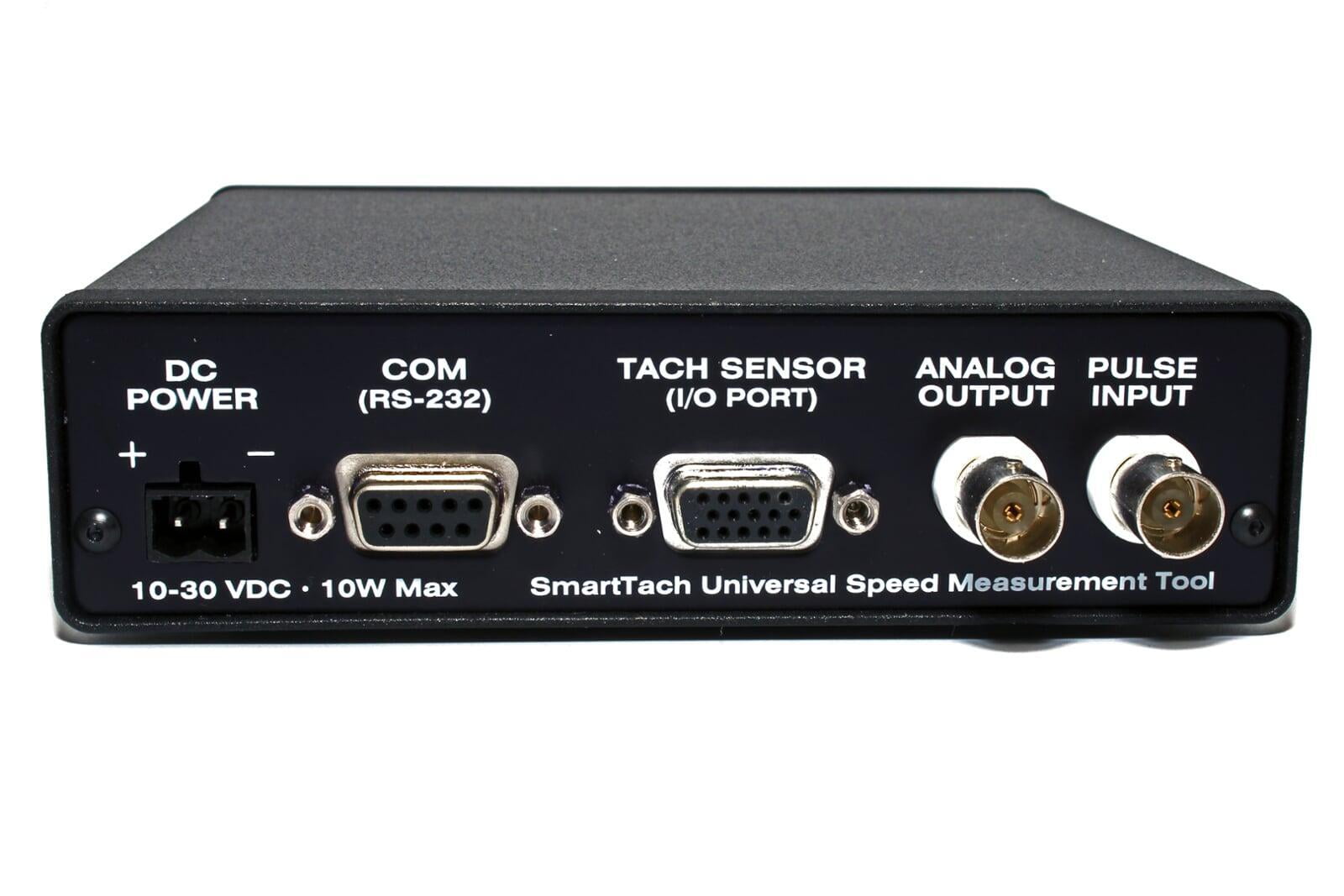

Signal Inputs/Outputs
Other Inputs/Outputs
Mechanical
Signal Inputs/Outputs

Signal Inputs/Outputs

 Pulse Inputs
Selectable between Spark (Coil Primary, Inductive Pickup) and Trigger (Digital, VRS) modes
Measurement range from 0.5 Hz to 500 KHz
Trigger voltage range +/-75 V
Intelligent signal conditioning in Trigger Mode
Analog Voltage Input
 Auxiliary analog voltage input used together with range outputs
Input voltage levels may be programmed along with range outputs
0 to 5 V input range
Analog Voltage Output
Optically isolated analog voltage output proportional to measurement
Programmable scaling, offset and range in engineering units
Maximum output range 0 to 10 V
12- bit D/A (+/- 0.003 V resolution)
Digital Pulse Output
Optically isolated digital 5 V conditioned pulse output corresponding to input signal
May be used to connect to other instrumentation requiring conditioned signals
Range Outputs
Three user programmable range outputs
Speed ranges for output activation may be independently programmed
Optically isolated solid state relay (contact-closure) outputs
Other Inputs/Outputs

Other Inputs/Outputs

Communication Port
 RS-232 Serial Port, 75-9600 BAUD
May be used for obtaining data from the unit and for remote configuration
 Power Supply
Requires 10-30 VDC at 10W maximum
Internal regulated power supply
Mechanical

Mechanical

Enclosure
Aluminum and steel, black color, water and oil resistant
Dimensions: (WDH) 141 x 138 x 39 mm / 5.57 x 5.45 x 1.52 in
Weight: 0.58 kg / 1.3 lbs

Accessories

Tach Sensor
Tach
Sensor

100-0007/0009

Measures engine speed when clamped around an Ignition Primary wire (with 15-pin Dsub connector); 3.66m cable

Buy Now
Optical Diesel RPM Pickup
Optical Diesel RPM Pickup

100-0011

Measures speed of any rotating object (includes sensor)


Buy Now
Inductive Pickup
Inductive
Pickup

100-0014

Measures spark event when clamped around a Secondary Ignition cable. 4.8m cable


Buy Now
SmartTach with Rackmount System
SmartTach with Rackmount System

100-0016

Includes 1 SmartTach, 1 power supply, 1 bracket, and 1 blank rack cover




Contact your local sales office for purchasing details

19 in 1HU Rack Mount
19 in 1HU Rack Mount

102-0001

Rack mount designed for mounting one or two units in a cabinet


Contact your local sales office for purchasing details

DC Power Plug
DC Power
Plug

102-0006

2-pin open connector

Buy Now
Dual DC-Power  Plug
Dual DC-Power
Plug

102-0002

With Wire, Y-cable Adapter

Buy Now
AC/DC Power  Supply
AC/DC Power
Supply

100-0006

With AC Cord

Buy Now
Blank Rack Cover Plate
Blank Rack Cover Plate

102-0003

Covers holes on bracket

Buy Now

All specifications are subject to change without notice.
