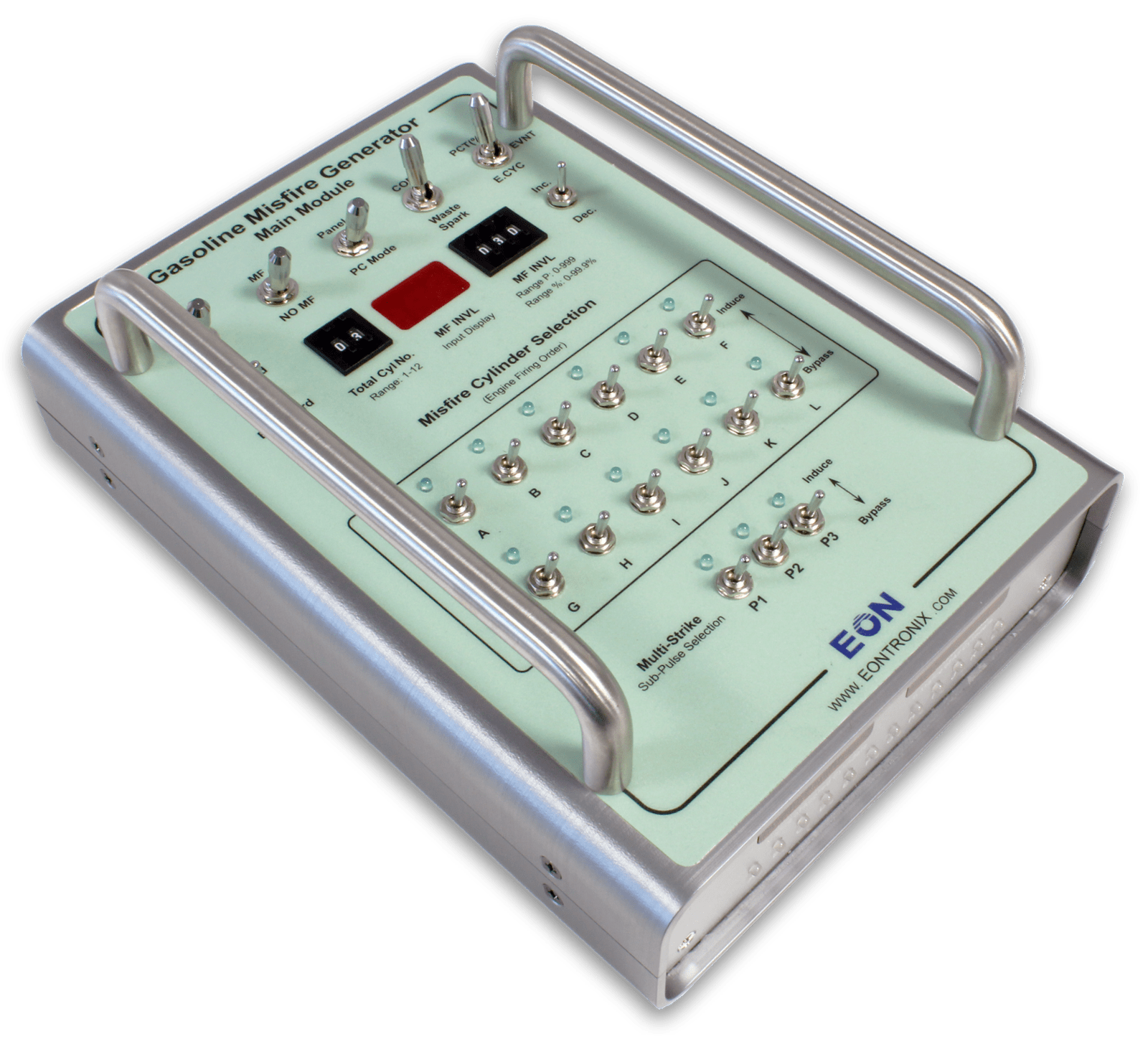

Misfire Generator

Engine misfires create not only excessive emissions but can also damage the catalyst systems in modern engine control systems. The Misfire Generator from Eontronix enables proper testing of OBD misfire detection strategies and catalyst functions.  The Misfire Generator detects the ECU ignition control signal and intercepts these signals according to a fixed or random pattern to achieve the exact misfire load desired. The Misfire Generator GS complies with the newly released US SAE Standard J2901.
Product Features:
  • 3 misfire input methods: Event-based, Engine Cycle-based, and Percent-based
  • Software configurable misfire setup
  • LEDs indicating cylinders that are misfiring
  • Self-diagnostic function with error codes showing different scenarios of incorrect operation
Misfire Generator
Datasheet
Specifications
Compatibility
Specifications

Specifications

Misfire Rate Range
 0-99.9%, Accuracy: +/-0.1%
Input Voltage of Main Module
 0-5 V, Output Voltage: 0-5 V
 Input Resistance> 7 kΩ, Output Resistance: < 110 Ω
 Operating Voltage 7-33 VDC
Operating Temperature
-40 ℃ to +120 ℃
Dimensions (main module)
 220 × 165 × 50 mm / Weight: 1.5 kg
Housing
Aluminum alloy with compact ruggedized design
Compatibility

Compatibility

  • SAE Standard J2901 compliance
  • Smart ignition coils and non-smart ignition coils support
  • Waste spark ignition systems and Coil-On-Plug (COP) ignition systems support
  • Multi-strike ignition systems support
  • Engine cylinder deactivation function support
  • Arbitrary combinations of cylinders are allowed to participate in misfiring
  • Applicable to engines up to 12 cylinders

Accessories

Remote  Module
Remote
Module
EON-OBD-MFGS-A101

Interfaces the Misfire Generator directly to the ignition coil primary circuits as found in distributor, waste-spark, and two wire coil-on-plug ignition systems. Includes cable

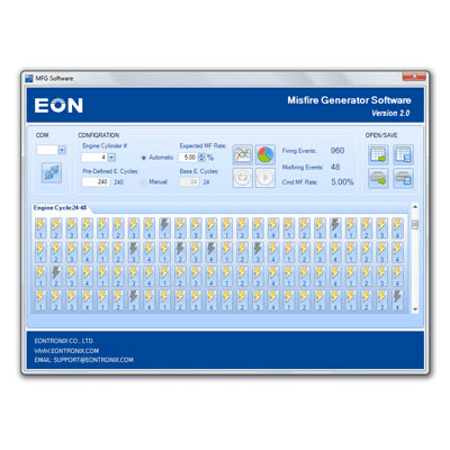

Configuration Software
Configuration Software
EON-OBD-MFGS-A104

Optional software for configuring advanced misfire patterns. Serial/USB adapter cable included. Software is not required for basic configuration and use

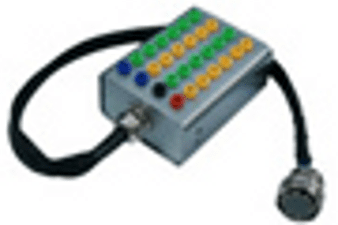

Breakout  Box
Breakout
Box
EON-OBD-MFGS-A103

Rugged metal housing with 24 banana jack connections for interfacing with up to 12 ignition coils. Requires MS3126F-18-32S Socket

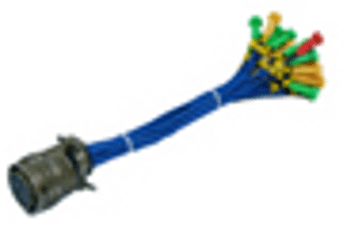

Pigtail  Harness
Pigtail
Harness
EON-OBD-MFGS-A102

Provides 24 banana jack connectors wired to a MS3126F-18-32S Socket for connection to the Misfire Generator



All specifications are subject to change without notice.
*This product is not available in all regions.
