Klaric High Voltage Measurement Technology

Klaric and Accurate Technologies High Voltage Measurement Technology
Klaric and Accurate Technologies Inc. (ATI) entered into a partnership in 2019. The partnership leverages the synergies between ATI’s measurement and calibration competencies and Klaric’s competitive advantage in the high voltage sector.


With the automotive industry changing rapidly, and increasing trends towards powertrain electrification, this development allows ATI to offer an even wider and more relevant product portfolio than ever before. The Klaric range of high-voltage modules and EV Charge Monitors is the perfect, high-quality hardware compliment to ATI’s VISION Calibration and Data Acquisition software packages, which have been successfully used by global OEMs and Tier Ones in hybrid and EV platforms.

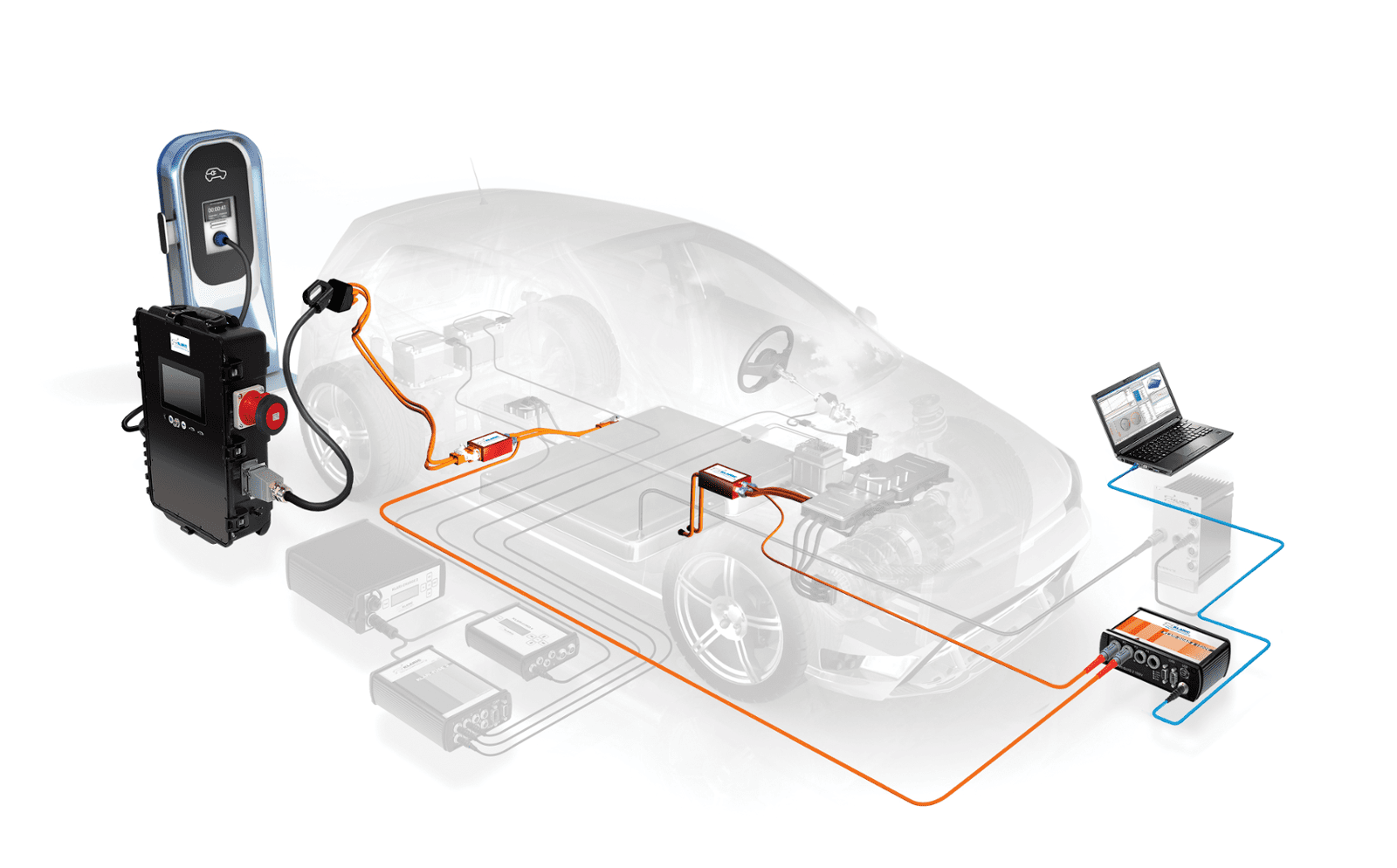

These data acquisition systems are optimized for testing new electric and hybrid vehicles making tasks easier, safer and faster.
Klaric’s precision measurement modules have CAN, RS232 and Ethernet interfaces for monitoring data output, setting range selection, and making automated measurements or manufacturing line adjustments.
More Info - Contact Sales

Quiescent Current Measurements in EV and PHEV

Looking for ways to do high accuracy, non-intrusive amperage testing and datalogging in EV and PHEV test environments? ATI and our partner Klaric DE can reduce instrumentation time, increase measurement accuracy, and improve vehicle battery life.

Complex Measurement Solutions
High Voltage Modules
High Voltage Breakout Boxes
High Voltage Probes
Quiescent Current Measurement EV/PHEV
EOL High Voltage Modules
Complex Measurement Solutions

Complex Measurement Solutions

Experience Klaric’s EV CHARGE-MONITOR for testing, validation and certification of electric and hybrid vehicles. This unit measures currents and voltages of AC- or DC-signals. Measuring speed is configurable individually. Current and voltage can be measured simultaneously up to 16 kHz.

PH/EV CHARGE MONITOR

CHARGE-MONITOR

The EV CHARGE-MONITOR is a measuring unit for measuring currents and voltages of AC- or DC-signals.The unit is installed between charge station and vehicle and measures speed which is configurable individually. The current and voltage can be measured simultaneously up to 16 kHz. The 7-inch- screen displays the output of the measuring values, the value measurements can also be saved on a USB drive or transmitted via CAN-interfaces

Datasheet
EV CHARGE-MONITOR

EV CHARGE-MONITOR RUGGED

Measurement system for acquiring power values when charging electric vehicles in harsh environments.

EV CHARGE-MONITOR RUGGED for measurement between the building connection and the charging station or between the charging station and the electric vehicle. Output of data on display, storage of measurement data via USB memory as well as output via CAN interface. Customizable interfaces for charging stations.
Datasheet
EV CHARGE-MONITOR RUGGED
High Voltage Modules

High Voltage Modules​

Klaric offers multiple measurement modules for electric- and hybrid vehicles. Each module is galvanically isolated up to 1500V DC and achieves sample rates up to 8 kHz. Module solutions include CAN data output and XCP-on-Ethernet data output options.

Universal HV Measurement Modules

MULTI-HV UIT ETH

Universal high-voltage measurement module for measuring current, voltage, power and temperature in the vehicle or in the laboratory.

8-channel high-voltage measurement module with 4 universal probe inputs for current, voltage, power or temperature on potentials up to 1,500 V. Calculation of work, power, rms values, frequency, power factor, charge, discharge and total balance. Measurement data output via Ethernet
Datasheet
MULTI-HV UIT ETH

MULTI-HV UIT

Universal high-voltage measuring module for measuring current, voltage, power and temperature in the vehicle or in the laboratory.

8-channel high-voltage measurement module with 4 universal test inputs for current, voltage, power or temperature at potentials of up to 1,500 V. Calculation of work, power, effective values, frequency, power factor, charge, discharge and total balance. Output via CAN
Datasheet
MULTI-HV UIT

Analog HV Measurement Modules

MULTI-HV ANALOG

HV measuring module for Voltage measurements up to 1.000V in the vehicle, test bench or in the laboratory. Data output via CAN

4 channel HV measurement module with probe input for Voltages up to 1.000 V. Data output via CAN
Datasheet
MULTI-HV ANALOG

MULTI-HV ANALOG ETH

HV measuring module for Voltage measurements up to 1.000V in the vehicle, test bench or in the laboratory. Data output via CAN

4 channel HV measurement module with probe input for Voltages up to 1.000 V. Data output via Ethernet
Datasheet
MULTI-HV ANALOG ETH

HV Temperature Measurement Modules

MULTI-HV THERM

HV measuring module for Temperature measurements with thermocouples in the vehicle, test bench or in the laboratory

4 channel HV measurement module with probe input for thermocouples. Data output via CAN
Datasheet
MULTI-HV THERM

MULTI-HV RTD

HV measuring module for Voltage measurements up to 1.000V in the vehicle, test bench or in the laboratory

4 channel HV measurement module with probe input for Voltages up to 1.000 V. Data output via CAN
Datasheet
MULTI-HV RTD
High Voltage Breakout Boxes

HV-Breakout Boxes

Klaric offers the right breakout box for every connector type. Furthermore, the also offer universal breakout boxes for plug-free integration of HV cables.

PLUG AND MEASURE

HV BREAKOUT-BOX LOW POWER

HV BREAKOUT-BOX with original HV connectors for safe measurements of high-voltage auxiliaries in the vehicle or on test benches.

HV BREAKOUT-BOX LOW POWER with original plugs for safe and precise measurements on ancillaries in high-voltage environments.
HV BREAKOUT-BOX LOW POWER
Datasheet

HV BREAKOUT-BOX HIGH POWER

HV BREAKOUT-BOX HIGH POWER with original HV connectors for safe measurements of power components and battery interfaces in vehicles or on test benches.

HV BREAKOUT-BOX HIGH POWER with original plugs were developed for safe and precise measurements on batteries and power electronics in high-voltage environments.
HV BREAKOUT-BOX HIGH POWER
Datasheet

UNIVERSAL

HV BREAKOUT-BOX 1PG/1PG

HV BREAKOUT-BOX 1PG/1PG with cable glands for safe measurements on high-voltage auxiliary units in the vehicle or on test benches.

HV BREAKOUT-BOX 1PG/1PG with cable glands for integrating HV cables.
HV BREAKOUT-BOX 1PG/1PG
Datasheet

HV BREAKOUT-BOX 2PG/2PG

HV BREAKOUT-BOX 2PG/2PG with universal cable glands for safe measurements on HV batteries and power components in vehicles or on test benches.

HV BREAKOUT-BOX 2PG/2PG with cable glands for integrating HV cables.
HV BREAKOUT-BOX 2PG/2PG
Datasheet

HV BREAKOUT-BOX 3PG/3PG

HV BREAKOUT-BOX 3PG/3PG with cable glands for safe measurements on e-machines in the vehicle or on test benches.

HV BREAKOUT-BOX 3PG/3PG with 3/3 cable glands for integrating HV cables.
HV BREAKOUT-BOX 3PG/3PG
Datasheet
High Voltage Probes

High Voltage Probes

Klaric offers a variety of probes for high voltage measurement modules in hybrid and electric vehicles. These probes have a high degree of accuracy as adjustment values are considered for the measurement result calculation.

PROBES FOR HIGH-VOLTAGE MODULES

HV-I-COMBI-PROBE

HV-I-PROBE for current measurements in high-voltage systems in vehicles, on test benches or in laboratories. Automatic probe identification.
Datasheet
KLARI-QUAD2 1500V

HV-I/U-COMBI-PROBE

HV-COMBI-I/U-PROBE for measurements of voltage and current with only one input Can be used in high-voltage systems in vehicles, on test benches or in laboratories. Automatic probe identification.
Datasheet
KLARI-QUAD2 1500V

HV-LEM-PROBE

LEM sensor with up to 1500V galvanically isolated supply for measurements in high-voltage systems in vehicles or on test benches. Automatic Probe identification.
Datasheet
KLARI-QUAD2 1500V
Quiescent Current Measurement EV/PHEV

Quiescent Current Measurement EV/PHEV

Looking for ways to do high accuracy, non-intrusive amperage testing and datalogging in EV and PHEV test environments? These solutions can reduce instrumentation time, increase measurement accuracy, and improve vehicle battery life.

KLARI-CORD 5

Measurement module optimized for long term measurement of quiescent and operating current, voltage and power measurement. Logging of the data via USB drive.
Datasheet
KLARI-CORD 5

FUSE-PROBE TYP FK1/MINI

FK1/Mini fuse probe for current measurements in the fuse box with protection by the original fuse. The FK1/Mini fuse is inserted into the fuse holder in the aluminum housing. Automatic Probe identification.
Datasheet
FUSE-PROBE TYP FK1/MINI

KLARI-CHARGE 2

Independent power supply of measurement modules in vehicles.
Datasheet
KLARI-CHARGE 2
EOL High Voltage Modules

EOLed High Voltage Modules​

All "Klari" solutions are entering into end of life and will be replaced by the new and improved "Multi HV" solutions. The Multi HV solutions have a smaller formfactor but still maintain all functionally of Klari line.

HIGH VOLTAGE MODULES WITH ETHERNET AND CAN

KLARI-QUAD2 1500V

8-channel module with 8 ADCs for current, voltage or thermocouple. Calculation of power, work, RMS, frequency, charge-, discharge- and total balance. Data output via CAN and XCP-on-Ethernet or KlaricServer. Channels galvanically isolated. Grouted

Datasheet
KLARI-QUAD2 1500V

KLARI-QUAD 2 TB 1500V

16-channel module with 8 universal inputs for current, voltage or thermocouple. Calculation of power, work, RMS, frequency, charge-, discharge- and total balance. Data output via CAN and XCP-on-Ethernet or KlaricServer. Channels galvanically isolated. Grouted

Datasheet
KLARI-PA625

HIGH VOLTAGE TEMPERATURE MEASUREMENT MODULES

KLARI-PT HV 1500V

4-channel High Voltage PT100/1000 RTD measurement Module. 1500V galvanic isolation. 4-wire ratiometric measurement. Dynamic sample rate to reduce amount of data during non-productive periods.

Datasheet
KLARI-PT HV 1500V

KLARI-THERM HV 1500V

4 channel HV Thermocouple measurement Module. Cold junction compensation for each channel. Dynamic sample rate to reduce amount of data during non-productive periods
Datasheet
KLARI-THERM HV 1500V

UNIVERSAL CAN HIGH VOLTAGE MODULES, GROUTED

KLARI-ONE PLUS 1000V

2 channel module with 2 Asic for current, voltage, current and voltage or thermocouple. DC or AC application. Grouted

Datasheet
UNIVERSAL CAN HIGH VOLTAGE MODULES, GROUTED
All specifications are subject to change without notice.
*This product is not available in all regions.
