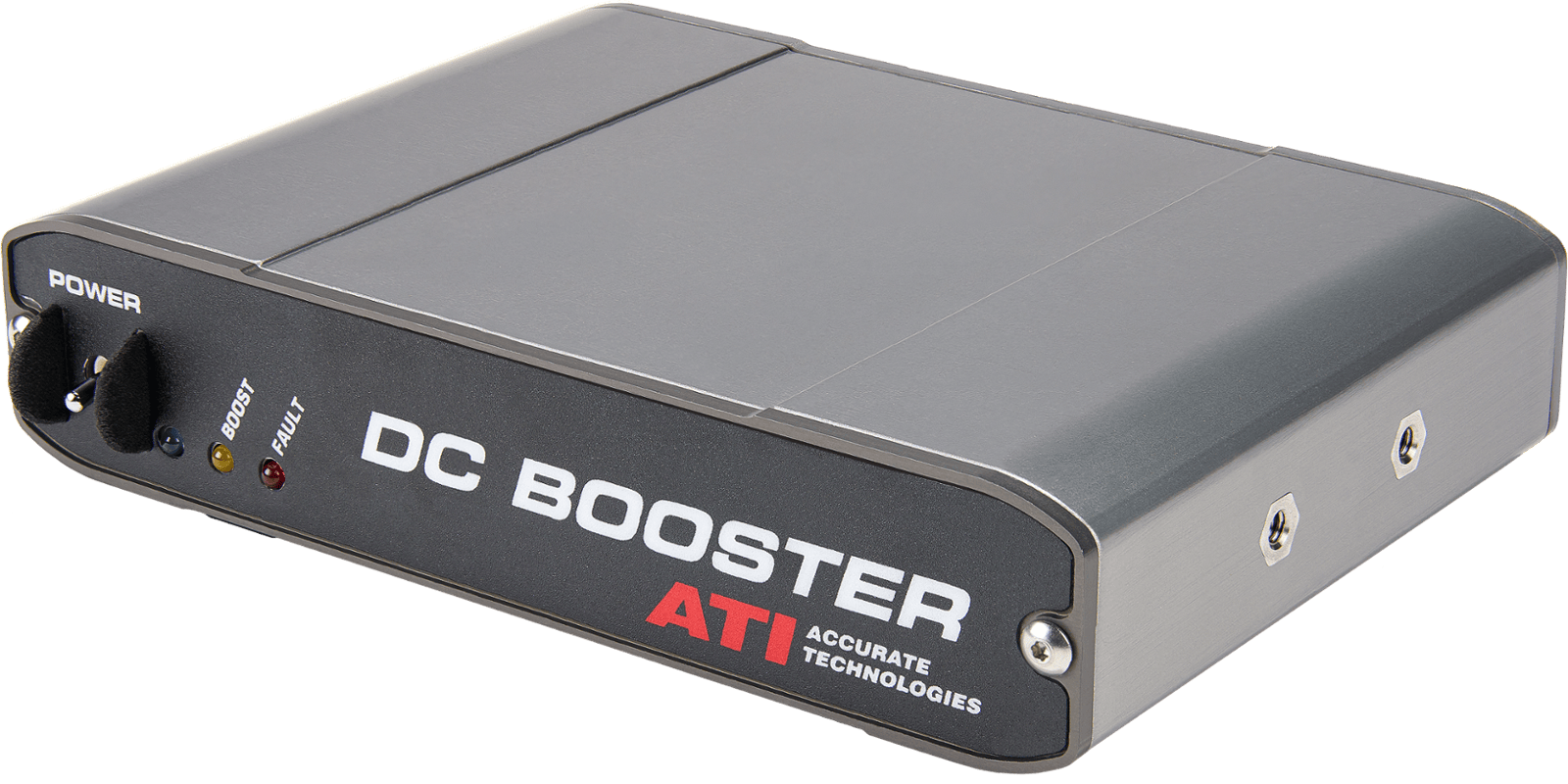

DC Booster

ATI's unique DC Booster Module provides a reliable constant voltage if the supply drops below 12 volts to vehicle test instrumentation during engine cranking or any other low battery event. Rather than using a dedicated, bulky auxiliary battery, the small, cost-effective DC Booster does not need special wiring or installation, fits in tight places and can be re-used from vehicle to vehicle.
Product Features:
  • Above an input voltage of 12 VDC, the supply voltage is passed through
  • Below 12 VDC, low input voltages are boosted to 12VDC
DC Booster

EN Datasheet
CN Datasheet

Specifications

LEDs
(3) Power, boost, full status
Power Input Voltage / Current
3.5-18 VDC / up to 30 A
 Power Output Voltage / Current 12-18 VDC / 7.5 A max
 Protection Protection for over-temperature condition
 Connectors
DC power input: LEMO 1B-Series 3-pin
DC power output: LEMO 1B-Series 3-pin
Auxiliary banana jacks
Temperature Range
-40 °C to +85 °C / -40 °F to +185 °F
Dimensions
135 x 93 x 29 mm / 5.31 x 3.66 x 1.14 in
Weight
 480 g / 16.9 oz

Accessories

U Adapter(Hub/ DC Booster)
U Adapter(Hub/ DC Booster)

150-0025

Joins power connectors for stacked VISION Hub and DC Booster; 90° 3-pin LEMO 1B connectors.


Contact your local sales office for purchasing details

Power  Cable
Power
Cable

150-0010

VISION Hub power cable (1.83 m/6 ft, 3.66 m/12 ft or 10.1 m/33 ft).

Buy Now
Mounting  Brackets
Mounting
Brackets

151-0009

Side mounting brackets for stacked VISION Hub and/or auxiliary modules



Contact your local sales office for purchasing details

All specifications are subject to change without notice.
