CANverter I/O Module

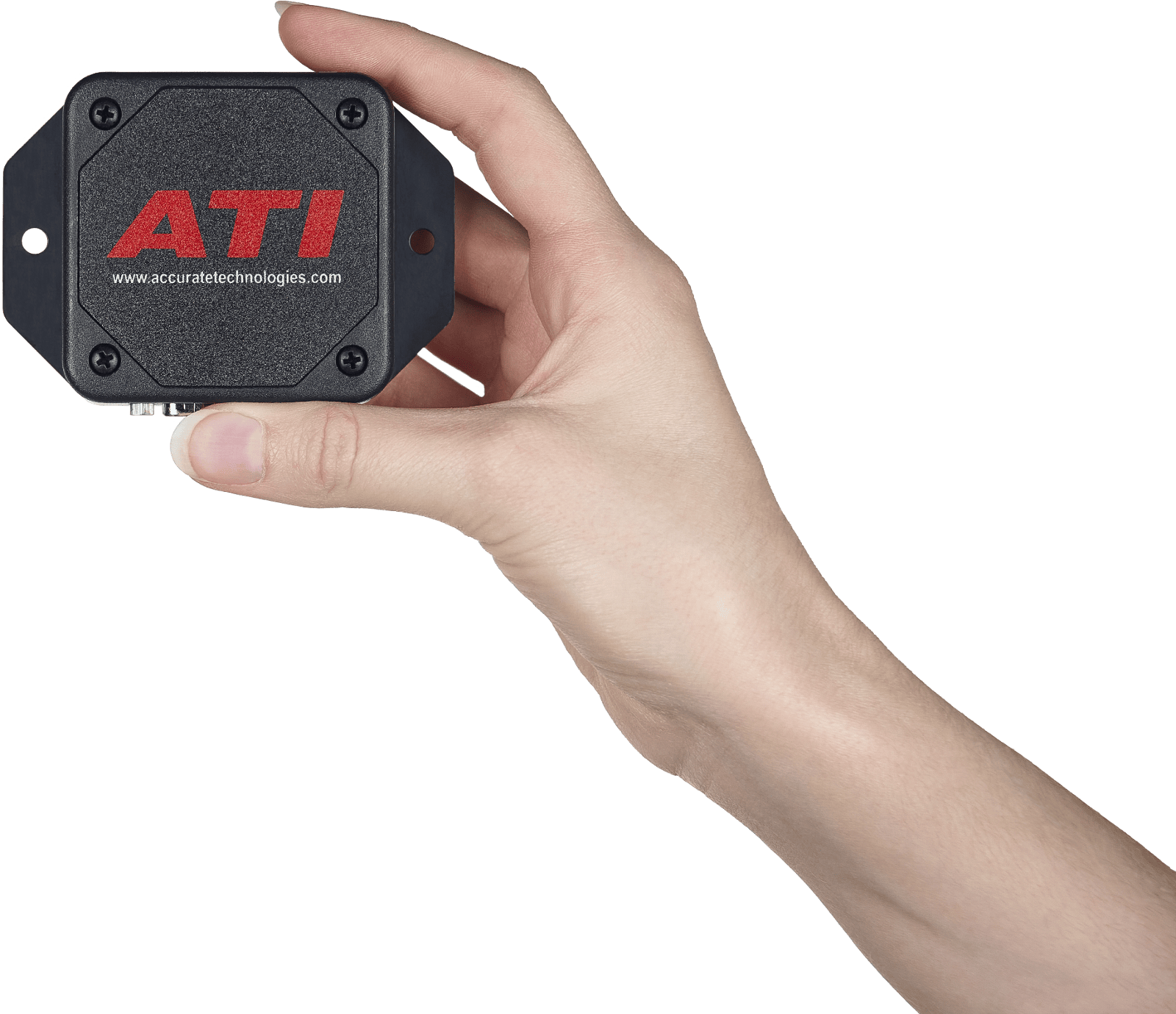

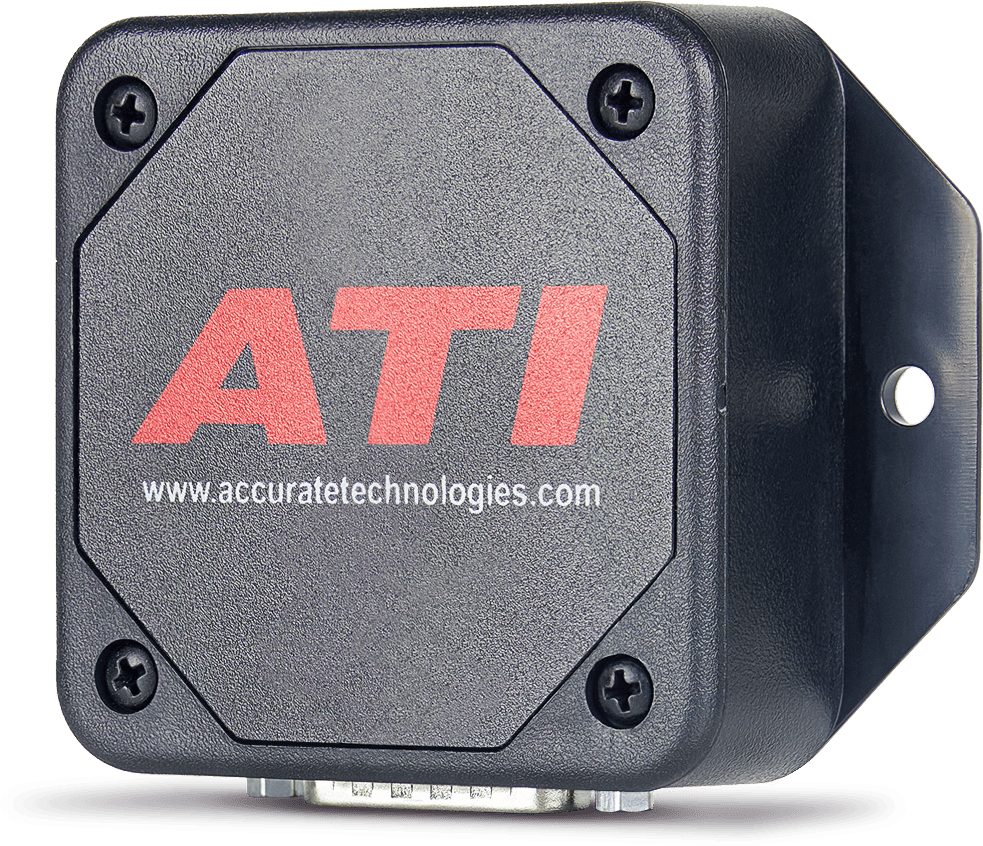

The CANverter is a compact, cost-effective I/O module for any high-speed physical layer CAN Network. The I/O module can either send a signal on a CAN bus or send CAN data to an external acquisition system. Its light-weight and compact size makes it portable and simple to install just about anywhere.
Product Features:
- Four customizable I/O channels: 0-5V 10-bit analog input, 0-5V 12-bit analog output
- Converts CAN bus data to analog voltages or digital signals
- Converts analog or digital inputs to CAN data
- Supports PWM outputs
- Easy setup via the CANverter Configuration Software (using a .DBC or .UEF database)
- CANverter draws about 50mA when powered at 12V. CANverter will never pull more than 100mA during operation.
Free Configuration Software for Third-party Tools
Specifications
Calibration
Specifications
Specifications
| Digital Input or Output | (4) customizable I/O channels: 0-5V 10-bit analog input 0-5V 12-bit analog output Digital (1) PWM Output |
| Communication | Network Port: High-speed CAN Configuration Port: RS-232 |

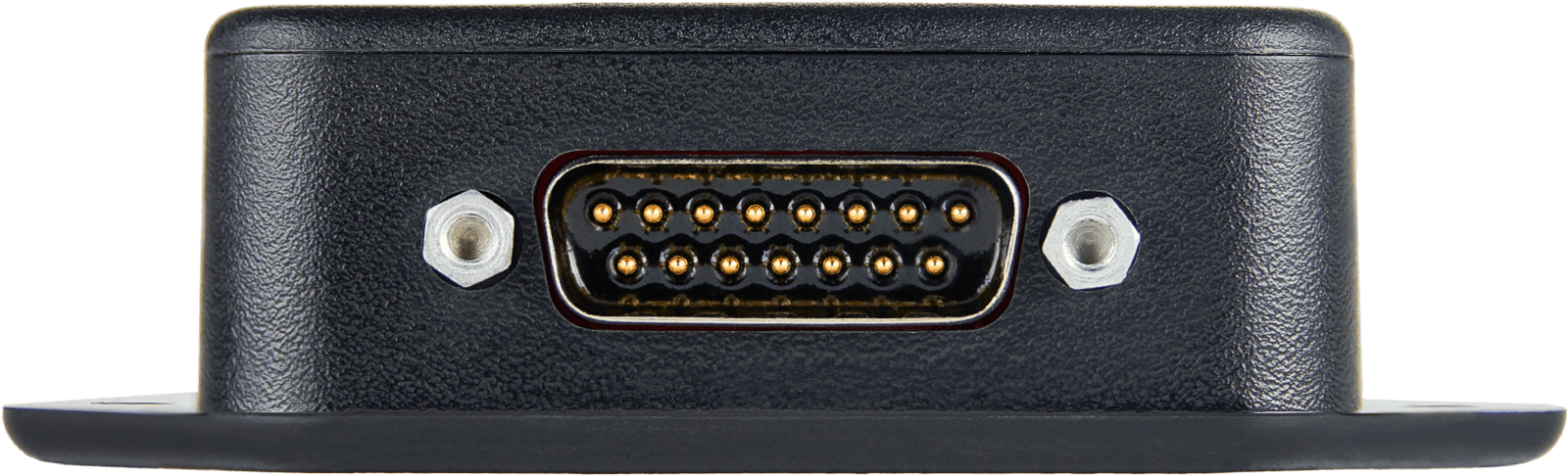

| Connector | 15-pin Dsub |
| Power Voltage | 7-18 VDC |
| Temperature Range | -40 °C to +85 °C / -40 °F to +185 °F |
| Dimensions | 8.9 x 6.7 x 2.56 cm / 3.5 x 2.63 x 1.01 in |
| Weight | 135 g / 4.77 oz |
| CAN to I/O Latency | The CANverter runs a 1ms loop. There should not be more than 1ms of latency between the receipt of a CAN Message and the Analog output updating. The CANverter can send out up to 3 CAN massages in 1ms intervals. When you get to 4 messages it drops 2ms intervals. |
Calibration
Accessories
CANverter Product Kit
165-0003
Includes CANverter module and harness.
CANverter Harness
150-0115
Provides standard connectors for Power, RS232 (DB 9F), CAN (DB 9M) and un-terminated wires for analog I/O.
All specifications are subject to change without notice.
