CANary CAN Interfaces

CANary and CANary FD are a pocket sized CAN interface for ATI's VISION calibration and Data Acquisition system. Both use CAN channels to bridge data between ATI’s data acquisition hardware, ECUs (using CCP or XCP), or other CAN devices that are compatible with VISION Calibration and Data Acquisition Software. These devices include ATI’s EMX Data Acquisition Series and most third party data acquisition modules.


The CANary communicates with the PC using Full-Speed USB (12Mbps) and has two high speed CAN channels and 2 Version 2.1 LIN channels. Both CAN channels are electrically isolated from the USB connection and have internal bus termination which can be set or unset by VISION.


The CANary FD is designed to handle the increased data available on CAN FD networks while retaining all the features of the standard CANary. The CANary FD easily connects to PC over USB that provides a simple method to acquire CAN data with VISION using any of the 4 galvanically isolated channels.


The new J2534/2-2019 API allows usage of multiple CAN channels with 3rd party software applications and maintains support for the GMW17753 method.
Buy CANary
Buy CANary FD
EN Datasheet
CN Datasheet
Specifications
Pinout
Specifications

Specifications

 CANary FD CANary
 Configuration
 Application Interface VISION Calibration and Data Acquisition Software
Compatibility VISION 5.2+ VISION 4.0+
Indicators
 LEDs (1) Power status
(2) Communication status
 (1) Power Status
(4)Communication Status
Operating Conditions
 CAN Modes CAN FD and CAN 2.0B CAN 2.0B Only
 CAN Channels 4 2
 LIN Channels N/A 2 Version 2.1 LIN channels; supporting M/S mode
 Isolation
 4 Independent galvanically isolated channels  USB connection is isolated from the CAN channels
CAN FD Modes
ISO 11898:2015 up to 8Mbps data phase Non-ISO/Bosch 1.0 up to 8Mbps data phase
N/A
 Connectors To PC: 1 USB B Connection (high-speed 480Mbps) To CAN hardware: HDB15F To PC: 1 USB B Connection (full-speed 12Mbps) To CAN hardware: DB9-M
DC Power
 Via USB Via USB or VPWR pin on CAN connector (7.0 to 30Vdc)
 Temperature Range -40°C to +85°C / -40°F to +185°C
 Warranty1 year
Mechanical
 Construction IP40 Nylon 11 bioplastic enclosure
  Dimensions 38.0 x 64.2 x 20.4 mm / 1.5 x 2.46 x 0.8 in 38.7 x 61.8 x 21.9 mm / 1.52 x 2.43 x 0.86 in
  Weight 28.3 g / 1 oz 32g / 1.13oz
Pinout

CANary FD

CANary

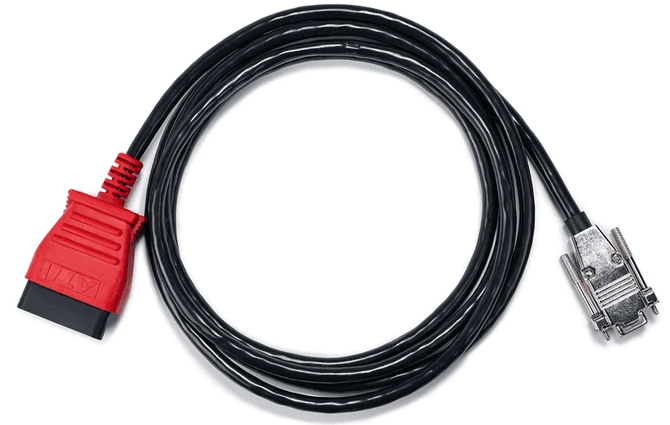

Accessories

CANary Instrumentation Adapter

CANary Instrumentation Adapter

153-0100

Replaces connections normally provided by VISION Hub

Buy Now
CANary CAN Splitter
CANary
CAN
Splitter

150-0196-6IN

CANary CAN splitter cable



Buy Now
USB to USB Cable
USB to
USB
Cable

150-0002

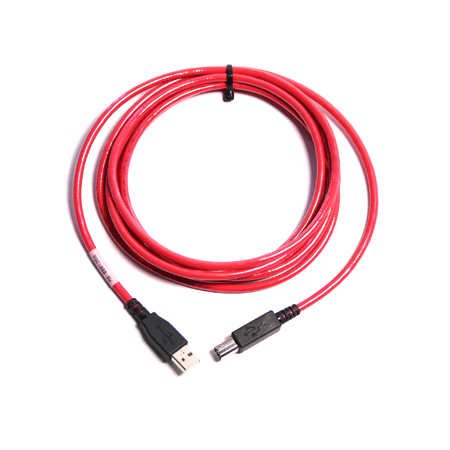

Rugged USB A to USB B connectors - supports -40°C to 105°C (3.048m/10 ft)

Buy Now
CANary FD CAN Splitter
CANary FD
CAN
Splitter
150-0233

CANary FD to 9-pin breakout cable


Buy Now
CANary Instrumentation Adapter

CANary Kit

153-0006-KIT

CANary Kit with Breakout cable


Buy Now
CANary CAN Splitter
Cable OBDII BOB 3FT

150-0031

OBDII CAN Breakout Box for diagnosing electrical faults and CAN bus line activity

Buy Now

Image not available

CANary LIN Splitter

150-0251-9IN

Cable CANary LIN Splitter DB9-F to 2xCAN and 1xLIN DB9-M




All specifications are subject to change without notice.
