A8 Serial Interface

A8 Serial Interface
Where high data throughput is required, ATI offers its proven A8 Electronic Control Unit (ECU) Serial Interface modules. Designed specifically for automotive environments, the A8 Serial Interface module has been developed to read data from and write data to the ECU’s microprocessor memory regions reliably and quickly.


Available in both USB and Ethernet variants, ATI’s A8 Serial Interface modules support ECU high-speed data acquisition, calibration and flashing in a single OCDS, Nexus, or DAP2 debug interface. ATI’s A8 Ethernet connectivity is as easy to use as USB, enabling long distance connections of up to 50 meters with enhanced data transfer.


ATI recommends use of VISION™ calibration and data acquisition software to seamlessly accommodate time stamps and data synchronization. However, ASAM XCP communication protocol support, available for both USB and Ethernet variants, ensures compatibility of the A8 irrespective of software tool selection.
More Info - Contact Sales
Product Features:
  • Support for high speed ECU data acquisition, calibration and flashing through OCDS, Nexus, or DAP2 debug interfaces
  • Fast validation and synchronization of ECU code calibration data
  • Dynamic data rates allow easier configuration of the ECU acquisition
  • Intelligent flashing by optimizing algorithms that shorten flash time and minimize memory degradation caused by repeated operations
  • Dynamic overlay support that allows calibration of memory larger than available emulation memory
  • Power Management for minimal current draw from target; including low current sleep mode
EN Datasheet
CN Datasheet
Configuration
Performance
Operating Conditions
Microcontollers
Mechanical
Configuration

Configuration

Supported Microcontroller Families
Freescale MPC5XXX, S12x JTAG
Infineon TriCore TC17XX/TC2XX/TC3xx JTAG
Infineon TriCore TC2XX/TC3xx DAP2
Renesas RH850, V850E2 JTAG
(Can support most processors with a real-time debug port.)
Digital Voltage
(4) Power and Activity Status
Digital Current
USB 2.0 full speed or Ethernet
Performance

Performance

 Data RateUp to 150 32bit data items/ms
Number of Data Items
 1200/6000
 Sample Time Period100 μs
Simultaneous DAQ Rates
32 dynamic
Operating Conditions

Operating Conditions

 Power SupplyExternal source of 5-30 VDC
Operational Current (average)
 65 mA
 Quiescent Current Draw9 μA
Temperature Range
-40 ⁰C to max +105 ⁰C -40 °F to max +221 °F
Microcontollers

Microcontollers

NXP Semiconductors
 Micro Family Interface ATI Product
MPC5xxx
JTAG Interface
A8 Serial Interface Modules
Renesas Electronics Corporation
 Micro Family Interface ATI Product
 RH850  JTAG Interface  A8 Serial Interface Modules
Infineon Technologies AG
 Micro Family Interface ATI Product
 TriCore TC17xx/TC2xx/TC3xx  JTAG Interface


DAP2 Interface
 A8 Serial Interface Modules

A8 Serial Interface Module
Mechanical

Mechanical

Dimensions
 60.1 x 45.7 x 10.6 mm / 2.37 x 1.80 x 0.42 in
Weight
105 g / 3.70 oz

Accessories

USB Cable (LEMO 0B)
USB Cable
(LEMO 0B)

150-0066

USB A/LEMO 0B 5-pin plug (30.5cm/12in or 2.4m/8ft)


Buy Now
USB Cable LEMO 0F)
USB Cable
(LEMO 0F)

150-0118

USB-A plug to LEMO 0F 5-pin plug (1.31m/4.3ft, 2m/6.6ft or 2.44m/8ft)

Buy Now
Internal Cable (LEMO 0F)

Internal Cable

(LEMO 0F)

150-0187

USB LEMO 0F 5-pin socket to JST 10-pin plug (5IN)



Internal Power Cable
Internal Power
Cable
150-0125

Power JST 2-pin plug unterminated (17.7cm/7in or 0.3m/12in)

Buy Now

Image not available

Serial Interface
Power Cable

150-0073

DC Power LEMO 0B 3-pin plug to Banana Jacks (1.83m)




USB Cable (LEMO 0B Shield connected)
USB Cable (LEMO 0B Shield connected)
150-0181

USB-A to LEMO 0B 5-pin plug Shield connected (2.44m/8ft)

Buy Now
USB Cable (LEMO 0F Shield connected)
USB Cable (LEMO 0F Shield connected)

150-0182

USB-A to LEMO 0F 5-pin plug Shield connected (2.44m/8ft)

Buy Now
Internal Cable
Internal
Cable
150-0191

Coldstart 6-pin JST to 1 wire unterminated (25.4cm/10in)

Buy Now

Image not available

Internal Cable
(LEMO 0B)

150-0186

USB LEMO 0B 5-pin socket to JST 10-pin plug, (12.7cm/5in)

Buy Now

Image not available

Internal Cable
(OCDS)
150-0195

10-pin header to 16-pin OCDS (12.7cm/5in)


USB Cable (LEMO 0B Shield connected)
Ethernet Power
Cable
150-0201-12IN

A8 Pwr 3-pin JST to unterminated (30.5cm/12in)

Buy Now

Image not available

Ethernet
Cable
150-0226-5IN

LEMO 1F 8-pin to JST 14-Pin; (12.7cm/5in)


USB Cable (LEMO 0B Shield connected)
Ethernet Cable
150-0227

A8 Ethernet RJ45 to LEMO 1F 8-pin (3m/10ft, 4.6m/15ft, 7.6m/25ft, 15.2m/50ft)

Image not available

Internal Cable
150-0129

Coldstart 6-pin JST to 1 wire unterminated (25.4cm/10in)



Internal Cable
Internal Cable

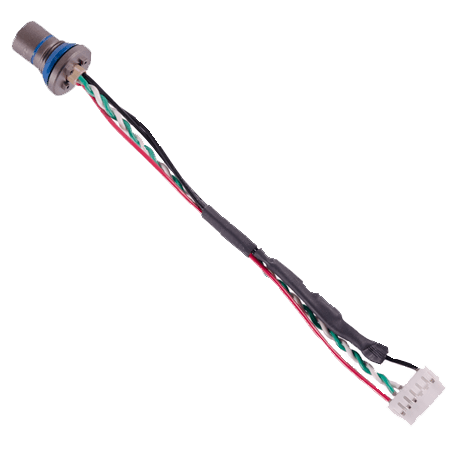

150-0159

JST 12-pin 2MM plug to LEMO 0F 5-pin socket (12.7cm/5in)



Image not available

Internal Cable
150-0188

SFMC 12-pin to SFM 10-pin FlexBd (15.2cm/6in)



Internal Cable
Icron USB Ranger 2.0 2304 4 Port
I-2304
Four port USB 2.0 high speed extension enabling USB 2.0 connections

Buy Now
EMX to PC Ethernet Cable High Temperature Range
A8 Ethernet RJ45 to LEMO 1F 8-pin

150-0227-HT

Connects the CTE and EMX via a LEMO 1F 8-pin to an RJ45 connector to either an Ethernet Switch or a laptop

All specifications are subject to change without notice.
