M6 Memory Emulators

______

M6 Memory Emulators are an obsoleated product and ATI can no longer guarantee the ability to support new builds or RMA repairs. While supplies last, there is a limited inventory of parts and units available for existing integrations.

Based on older/obsolete calibration methods there is no direct replacement for M6 Memory Emulators.

Please contact your local sales office for more information regarding alternative solutions, replacements, remaining stock, and other options.

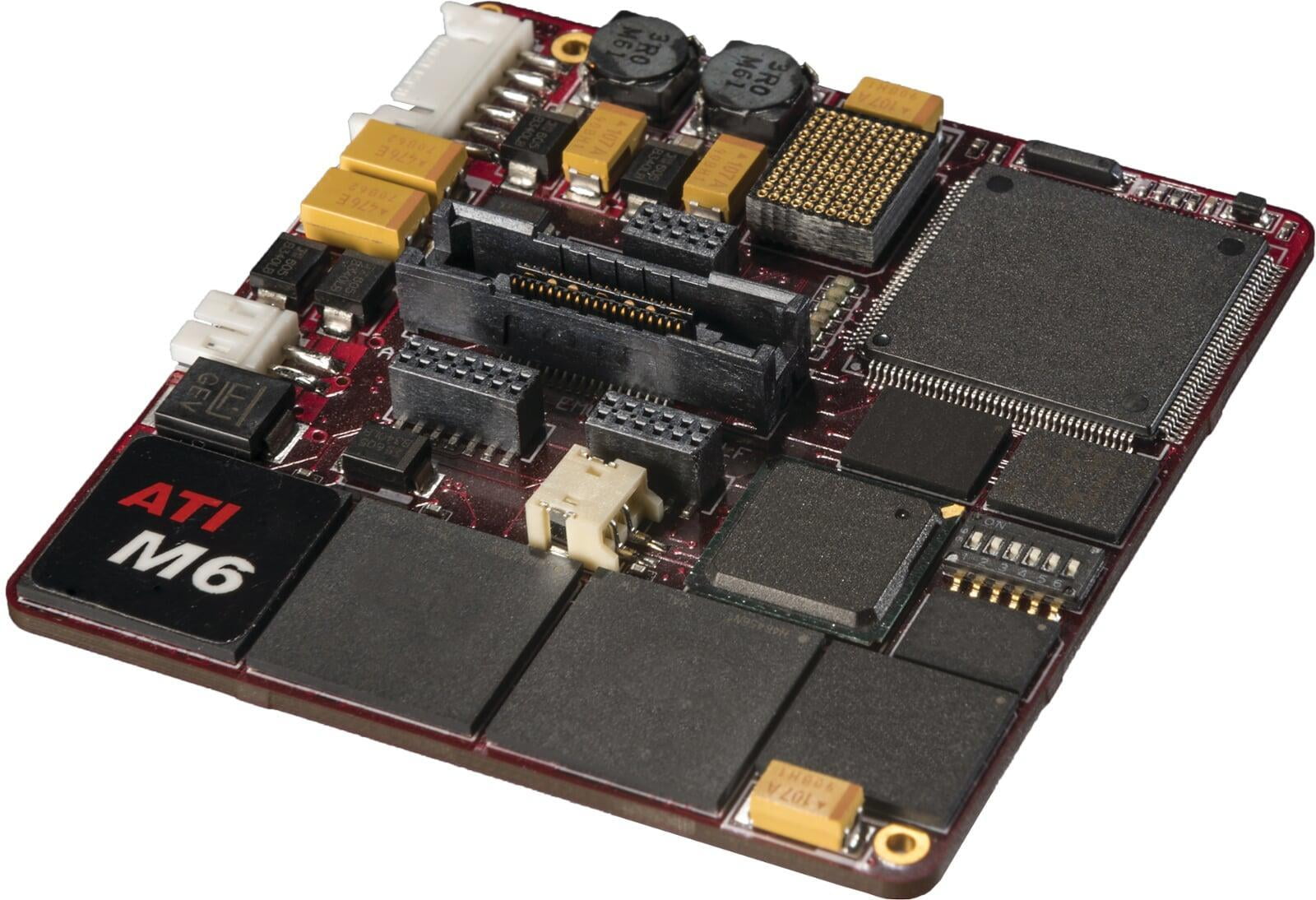

M6 Memory Emulator Modules

Achieve typical measurement rates of 300 to 400 data items every 10msec with exact time stamp accuracy using ATI’s tailored M6 Memory Emulators for the calibration of Electronic Control Units (ECUs). This competitively priced, stand-alone solution with built-in USB interface provides full, plug and play compatibility without the need for any additional hardware or external modules. Memory Emulator implementations for 8-, 16-, and 32-bit applications and BGA or socketed versions are available.
Product Features:
  • M6 supporting the Freescale PowerPC MPC5xx Product Family
  • M6V supporting the Freescale MPC5500 and MPC5600, VertiCal compliant Product Family
M6 Memory Emulator
EN Datasheet
CN Datasheet
Configuration
Memory
Operating Conditions
Mechanical
Configuration

Configuration

Microcontroller Types
M6: M6-555: MPC555, MPC556
       M6-563: MPC561, MPC562, MPC563, MPC564
       M6-565: MPC565, MPC566
M6V: Freescale MPD5554/5553/5534/5533
All of the above available with processor installed or processor socket
ECU Connection
 Plugs into mating ECU processor socket
ECU Adaptation
The chip selects and microcontroller bus are configurable to allow the M6/M6V to be adapted to various ECUs
ECU Programming
 Capable of programming internal and external ECU flash memory stand-alone (No need for separate flashing tool)
Calibration A/B Comparison
External switch input for selecting between two calibration data sets for comparison purposes with the need of a PC
Memory

Memory

Memory Access
8-bit, 16-bit, or 32-bit burst data or asynchronous access
Bus voltage 2.6 V or 3.3 V based on CPU (M6 and M6V are 5 V tolerant)
Emulation Memory(2) separate banks of 1 MB (for calibration bank swapping)
 Data Acquisition Memory Size 512 KB of dual-port RAM
 On-board Flash Memory8 MB flash non-volatile emulation memory storage
Min Memory Access Time
16 ns
Operating Conditions

Operating Conditions

 Power On/OffExternal wake-up and self-shutdown (e.g. vehicle cold start)
Communication
PC interface: USB full speed at 12 Mbps
To other ATI hardware: CAN standard ISO11898
 Power Supply 6-8 VDC; (2) power inputs provided - internal ECU connection, optional external power supply
 Max Supply Current 400 mA at 12 VDC
Temperature Range
-40 ⁰C to max +110 ⁰C
-40 °F to max +230 °F
Mechanical

Mechanical

 Construction Special high temperature PCB material, humidity and vibration resistant
Dimensions
 64 x 61 x 7 mm / 2.52 x 2.4 x 0.28 in (without CPU socket)

Accessories

USB Cable (LEMO 0B)
USB Cable
(LEMO 0B)

150-0066

USB A/LEMO 0B 5-pin plug (30.5cm/12in or 2.4m/8ft)


Buy Now
USB Cable  LEMO 0F)
USB Cable
(LEMO 0F)

150-0118

USB-A plug to LEMO 0F 5-pin plug (1.31m/4.3ft, 2m/6.6ft or 2.44m/8ft)

Buy Now
Internal Power  Cable
Internal Power
Cable
150-0119/0125

Power JST 2-pin plug unterminated (17.7cm/7in or 0.3m/12in)

Buy Now

Image not available

Internal Cable
(LEMO)
150-0129

USB LEMO 0B 5-pin socket to JST 12-pin plug (12.7cm/5in).

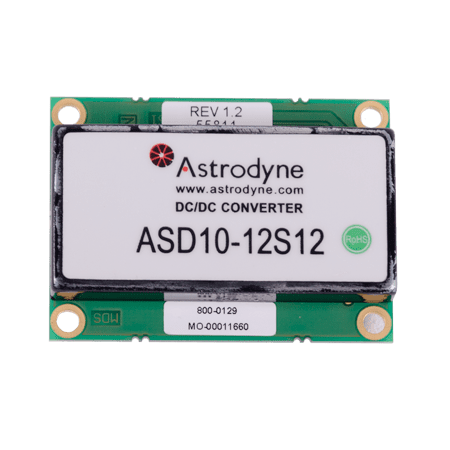

Power  Supply
Power
Supply
162-0020

M6 Isolated Power Supply



Image not available

Serial Interface Power Cable
150-0073

DC Power LEMO 0B 3-pin plug to Banana Jacks (1.83m)


USB Cable (LEMO 0B Shield connected)
USB Cable (LEMO 0B Shield connected)
150-0181

USB-A to LEMO 0B 5-pin plug Shield connected (2.44m/8ft)

Buy Now
USB Cable (LEMO 0F Shield connected)
USB Cable (LEMO 0F Shield connected)

150-0182

USB-A to LEMO 0F 5-pin plug Shield connected (2.44m/8ft)

Buy Now

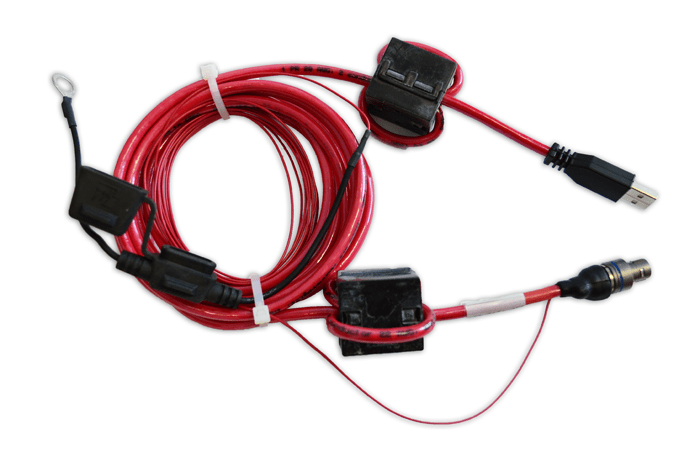

USB Cable (Ring Terminal)
USB Cable (Ring Terminal)
150-0171

USB/Power USB-A/Ring Terminal to LEMO 1F 8-pin plug (2.44m/8ft)

Image not available

USB Cable
(Banana)
150-0162

USB/ Power USB-A/Banana to LEMO 1F 8-pin connector (2.44m/8ft).

All specifications are subject to change without notice.
